DS1780E

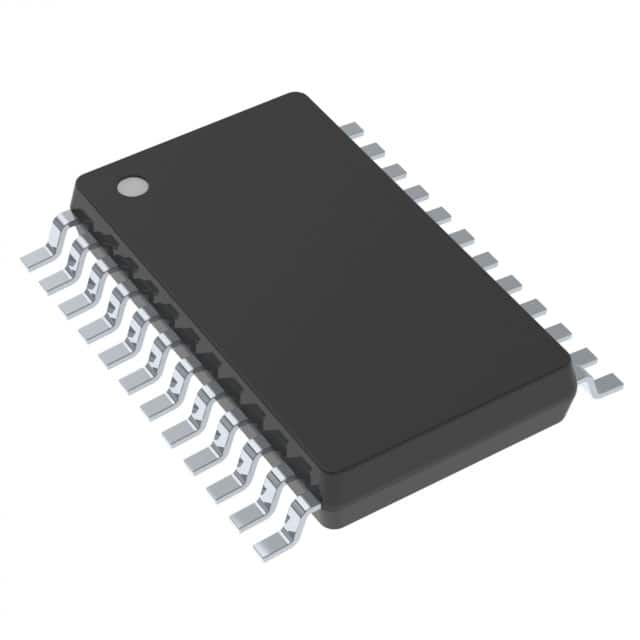

IC CPU PERIPHERAL MON 24-TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Thermal Management
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1780E is a thermal monitor IC designed for CPU peripheral management. This component features an internal temperature sensor with a sensing range of -40°C to 125°C, offering ±12% accuracy. The DS1780E communicates via I2C/SMBus output and includes a fan speed control output. Its topology incorporates Sigma Delta ADCs, comparators, and a register bank for comprehensive thermal monitoring. Operating from a 2.8V to 5.75V supply, this device is suitable for applications requiring precise thermal management in sectors such as computing and industrial automation. It is supplied in a 24-TSSOP package for surface mounting.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | I2C/SMBus |
| Mounting Type | Surface Mount |
| Function | Thermal Monitor, CPU Peripherals |
| Accuracy | ±12% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.8V ~ 5.75V |
| Sensor Type | Internal |
| Sensing Temperature | -40°C ~ 125°C |
| Topology | ADC (Sigma Delta), Comparator, Fan Speed Control, Register Bank |
| Output Alarm | No |
| Output Fan | Yes |
| Supplier Device Package | 24-TSSOP |
