DS26524GA4
DS26524 QUAD T1/E1/J1 TRANSCVRManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Telecom
Quality Control: Learn More

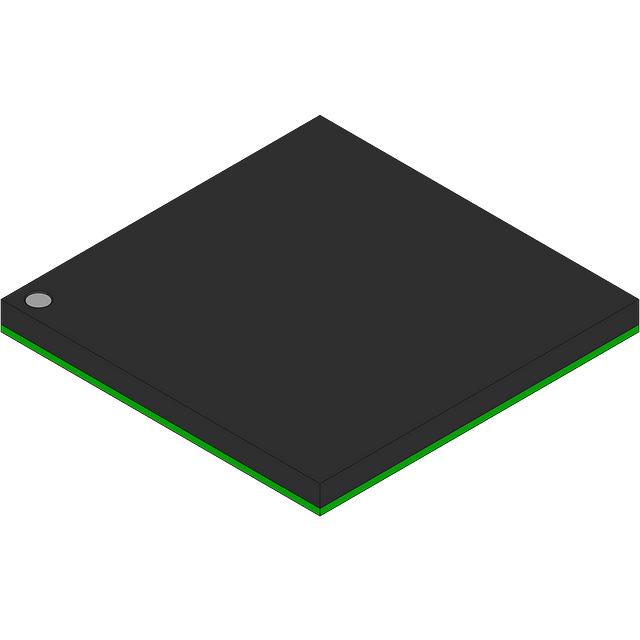

Analog Devices Inc./Maxim Integrated DS26524GA4 is a quad T1/E1/J1 transceiver featuring integrated framer and Line Interface Unit (LIU) functionality. This high-performance telecom component is designed for demanding network infrastructure applications. The DS26524GA4 supports E1, J1, and T1 interfaces, offering versatility for global telecommunications deployments. It operates from a 3.135V to 3.465V supply voltage, with a typical current draw of 450mA. The device is housed in a 256-CSBGA (17x17) surface-mount package, facilitating efficient board assembly. Its robust design and multiple circuit integration make it suitable for use in carrier-grade network equipment and advanced telecommunication systems.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 256-LBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Function | Framer, Line Interface Unit (LIU) |
| Interface | E1, J1, T1 |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Current - Supply | 450mA |
| Supplier Device Package | 256-CSBGA (17x17) |
| Number of Circuits | 4 |
