DS2155GNB+
IC TELECOM INTERFACE 100CSBGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Telecom
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS2155GNB- is a single-chip telecom transceiver designed for robust telecommunications applications. This component, housed in a 100-CSBGA (10x10) package, offers E1, HDLC, J1, and T1 interface capabilities. It operates within a voltage range of 3.135V to 3.465V and draws a current of 75mA. The surface mount design facilitates integration into compact circuit boards. This transceiver is well-suited for use in telecommunications infrastructure, networking equipment, and digital communication systems where reliable signal transmission and reception are critical. The device operates across a temperature range of -40°C to 85°C, ensuring performance in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Function | Single-Chip Transceiver |
| Interface | E1, HDLC, J1, T1 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Current - Supply | 75mA |
| Supplier Device Package | 100-CSBGA (10x10) |
| Number of Circuits | 1 |
Request a Quote
Clients Also Buy

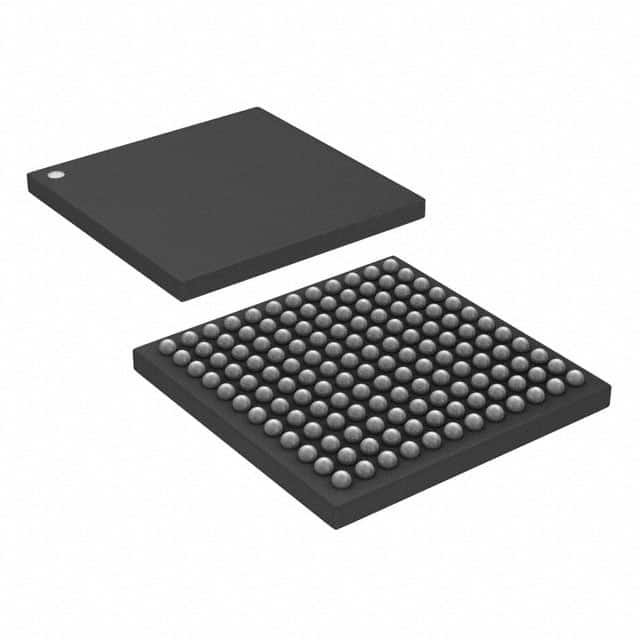

DS3153N
