MAX6823VUK+T
IC SUPERVISOR 1 CHANNEL SOT23-5Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6823VUK-T is a single-channel supervisor IC designed for critical voltage monitoring applications. This component features a push-pull, totem-pole output stage and provides an active-low reset signal with a minimum timeout of 140ms. The voltage threshold for monitoring is precisely set at 1.58V. Packaged in a compact SOT-23-5 (SC-74A, SOT-753) surface-mount configuration, it operates reliably across a wide temperature range of -40°C to 125°C. Its robust design makes it suitable for use in the automotive, industrial, and consumer electronics sectors where stable power supply monitoring is essential. The MAX6823VUK-T is supplied in a Tape & Reel (TR) format.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

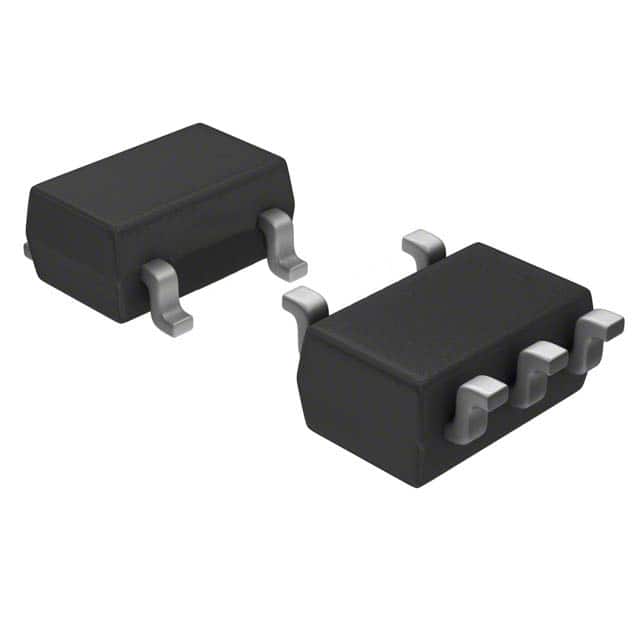

| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 1.58V |
| Supplier Device Package | SOT-23-5 |
| Programmable | Not Verified |
