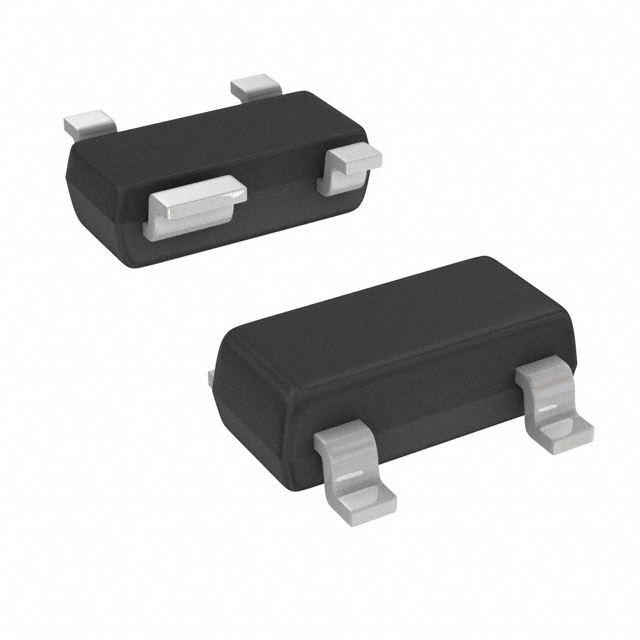

MAX6805US46D3+T
IC SUPERVISOR 1 CHANNEL SOT143-4Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX6805US46D3-T is a single-channel supervisor IC featuring an open-drain or open-collector output. This component is designed for simple reset and power-on reset applications, monitoring a single voltage threshold set at 4.63V. It provides an active-low reset signal with a minimum timeout of 100ms. The device operates across a temperature range of -40°C to 125°C and is supplied in a compact SOT-143-4 package, suitable for surface mounting. This component is commonly utilized in industrial, automotive, and consumer electronics where reliable power supply monitoring is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 100ms Minimum |
| Voltage - Threshold | 4.63V |
| Supplier Device Package | SOT-143-4 |
| Programmable | Not Verified |
