MAX6796TPSD2+
IC REG LIN W/SPR VSR 20-TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More

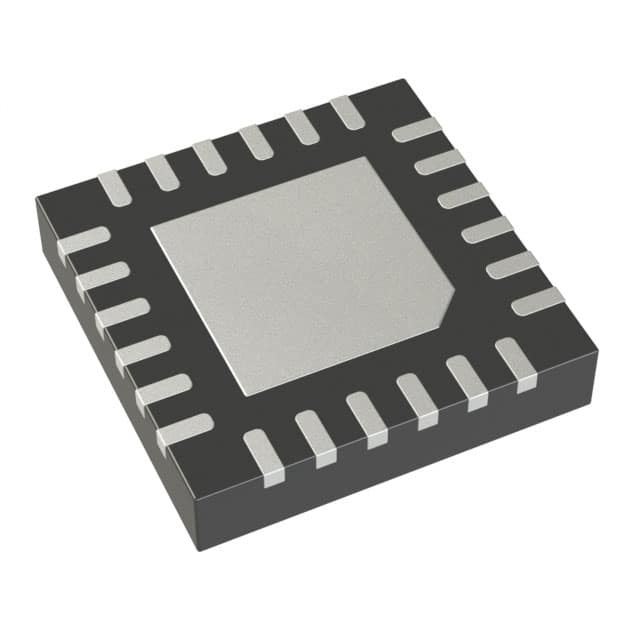

Analog Devices Inc./Maxim Integrated MAX6796TPSD2- is a single-channel voltage supervisor with a push-pull, totem-pole output. This device offers precise voltage monitoring and reset assertion for critical system operations. It features a regulated output and a single monitored voltage threshold at 2.888V, adjustable. The reset signal is active low with a minimum timeout of 8.75ms. Packaged in a 20-TQFN (5x5) with an exposed pad for enhanced thermal performance, this component is designed for surface mounting. Its operating temperature range is -40°C to 125°C (TA). This device finds application in automotive, industrial, and consumer electronics where robust voltage supervision is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Regulator/Supervisor |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 8.75ms Minimum |
| Voltage - Threshold | 2.888V, Adj |
| Supplier Device Package | 20-TQFN (5x5) |
| Programmable | Not Verified |
