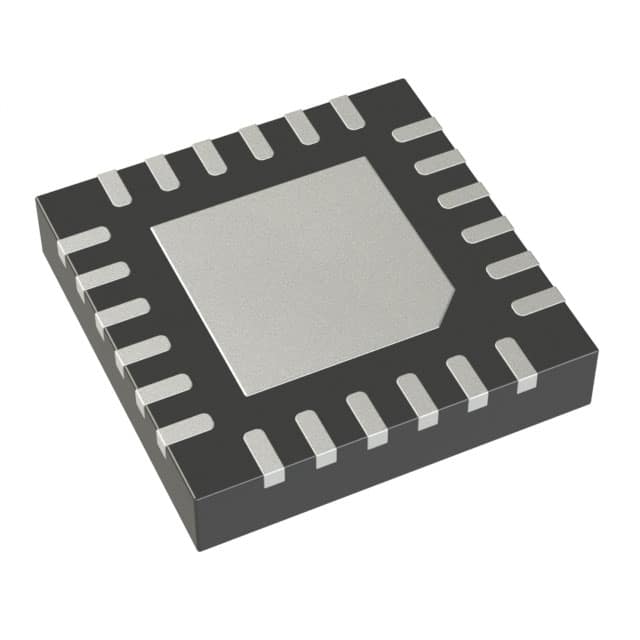

MAX6791TPLD2+T
IC SUPERVISOR 2 CHANNEL 20TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6791TPLD2-T is a 2-channel supervisor IC designed for robust system monitoring. This component features open-drain or open-collector outputs and provides critical voltage threshold monitoring with adjustable and fixed settings at 4.625V. It includes an active-low reset signal with a minimum timeout of 8.75ms, ensuring reliable system initialization and fault detection. The device operates across a wide temperature range of -40°C to 125°C. Packaged in a 20-TQFN (5x5) with an exposed pad for enhanced thermal performance, it is supplied on a tape and reel for efficient surface-mount assembly. This supervisor is instrumental in applications requiring precise voltage supervision, including automotive systems, industrial controls, and complex power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Regulator/Supervisor |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 2 |
| Reset Timeout | 8.75ms Minimum |
| Voltage - Threshold | 4.625V, Adj |
| Supplier Device Package | 20-TQFN (5x5) |
| Programmable | Not Verified |
