MAX6747KA30/V+
MICROPROCESSOR RESET CIRCUITS WIManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX6747KA30-V is an automotive-grade supervisory circuit designed for robust system monitoring. This component features a single voltage threshold of 3V and provides an active-low reset output with a minimum timeout of 5.692ms. The output configuration is open-drain or open-collector, facilitating flexible integration into various system designs. Packaged in a compact SOT-23-8, the MAX6747KA30-V is suitable for surface-mount applications requiring a reliable power-on reset function. Operating across a wide temperature range of -40°C to 125°C, this device is AEC-Q100 qualified, making it an ideal choice for demanding automotive and industrial applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 97 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

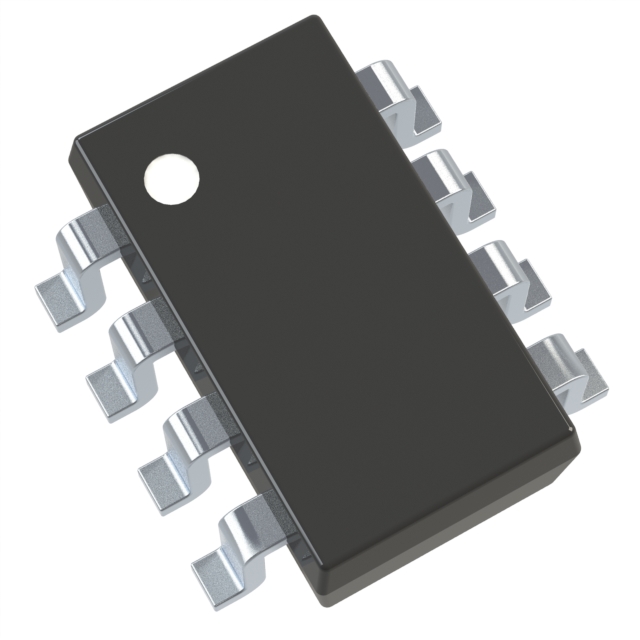

| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 5.692ms Minimum |
| Voltage - Threshold | 3V |
| Supplier Device Package | SOT-23-8 |
| Grade | Automotive |
| Programmable | - |
| Qualification | AEC-Q100 |
