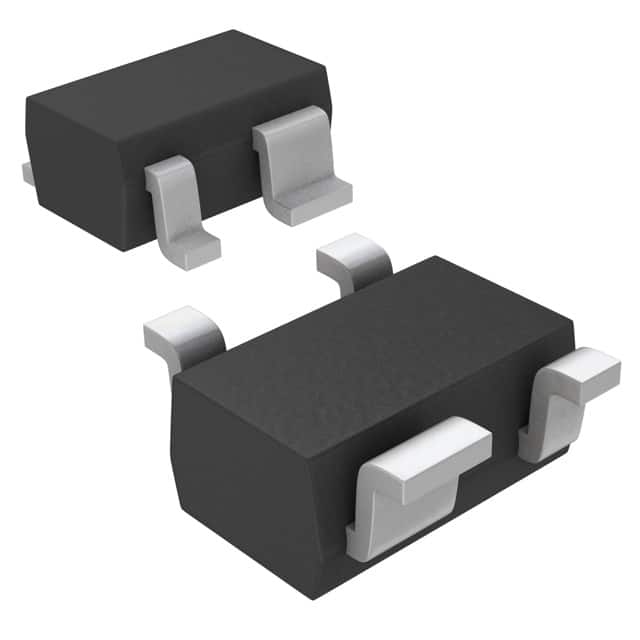

MAX6385XS16D3+T
IC MPU/RESET CIRC 1.58V SC70-4Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6385XS16D3-T is a voltage supervisor IC designed for precise power-on and reset monitoring. This component features a single voltage monitoring channel with a fixed threshold of 1.58V, ensuring robust operation in demanding applications. The push-pull, totem-pole output stage provides a clean and reliable reset signal. Packaged in an SC-70-4 (SC-82A, SOT-343) for surface mounting, it operates across a wide temperature range of -40°C to 125°C. The active-high reset output has a minimum timeout of 140ms, crucial for system stability during power transitions. This device is commonly utilized in portable electronics, automotive systems, and industrial control applications where reliable power monitoring is critical for system integrity. Supplied on tape and reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-82A, SOT-343 |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active High |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 1.58V |
| Supplier Device Package | SC-70-4 |
| Programmable | Not Verified |
