MAX6323GUT46+T
IC SUPERVISOR 1 CHANNEL SOT23-6Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX6323GUT46-T is a single-channel supervisory circuit designed for critical voltage monitoring applications. This device features a push-pull totem pole output for robust reset signal generation. With a reset timeout of 100ms minimum and an active-low reset output, it ensures reliable system operation. The voltage threshold is set at 4.63V, making it suitable for a variety of power supply monitoring needs.

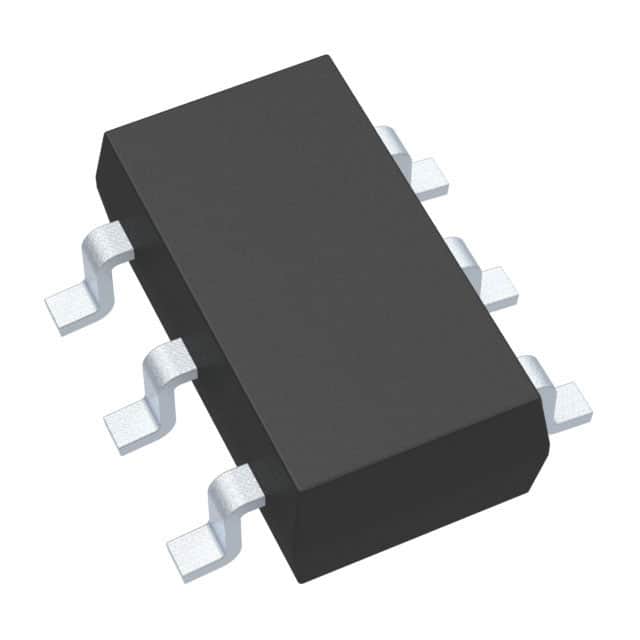

Engineered for surface mount applications, the MAX6323GUT46-T is supplied in a compact SOT-23-6 package, commonly found on tape and reel (TR). Its operating temperature range of -40°C to 125°C (TA) allows for deployment in demanding industrial and automotive environments. This component is a key element in systems requiring precise voltage supervision, contributing to enhanced system stability and fault prevention.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Watchdog Circuit |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 100ms Minimum |
| Voltage - Threshold | 4.63V |
| Supplier Device Package | SOT-6 |
| Programmable | Not Verified |
Request a Quote
