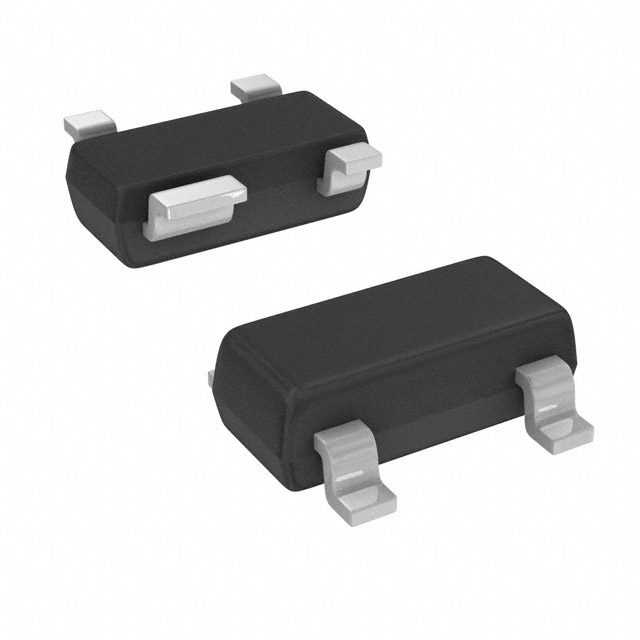

MAX6315US29D3-T

IC SUPERVISOR 1 CHANNEL SOT143-4

Manufacturer: Analog Devices Inc./Maxim Integrated

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated's MAX6315US29D3-T is a single-channel supervisor IC featuring an open-drain or open-collector output. This component, packaged in a SOT-143-4, monitors a single voltage threshold of 2.93V. It provides an active-low reset signal with a minimum timeout of 140ms. Designed for surface mount applications, the MAX6315US29D3-T operates across an extended temperature range of -40°C to 125°C. This device is commonly utilized in applications requiring robust power-on reset and system supervision, including automotive systems, industrial control, and consumer electronics. The part is supplied in tape and reel packaging.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	TO-253-4, TO-253AA
Mounting Type	Surface Mount
Output	Open Drain or Open Collector
Type	Simple Reset/Power-On Reset
Reset	Active Low
Operating Temperature	-40°C ~ 125°C (TA)
Number of Voltages Monitored	1
Reset Timeout	140ms Minimum
Voltage - Threshold	2.93V
Supplier Device Package	SOT-143-4
Programmable	Not Verified
