MAX6314US29D3+T
IC SUPERVISOR 1 CHANNEL SOT143-4Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More

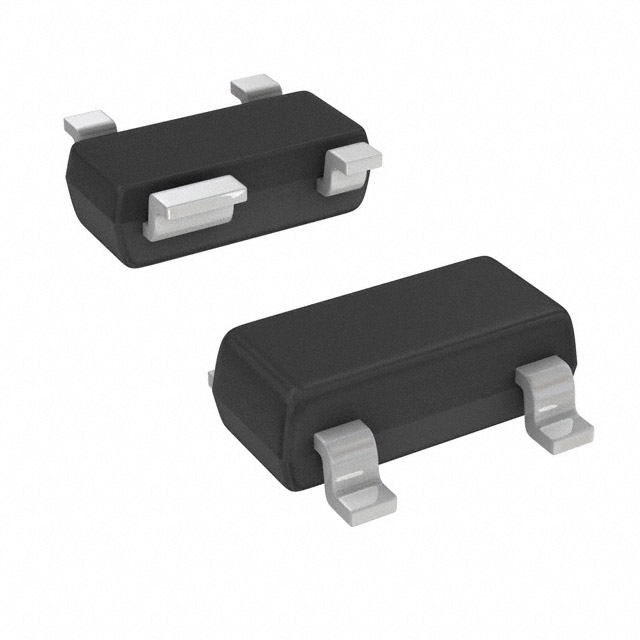

Analog Devices Inc./Maxim Integrated MAX6314US29D3-T is a single-channel supervisory IC designed for robust power management. This component features a precise 2.93V voltage threshold and offers a bidirectional output for flexible system reset control. The active low reset output guarantees a minimum timeout of 140ms, ensuring reliable power-on reset and system supervision. Packaged in a compact SOT-143-4 surface-mount format (TO-253-4, TO-253AA), this device is ideal for space-constrained designs. It operates across a wide temperature range of -40°C to 85°C (TA). This component finds application in various industries including automotive, industrial, and consumer electronics where stable power monitoring is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Output | Bidirectional |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 2.93V |
| Supplier Device Package | SOT-143-4 |
| Programmable | Not Verified |
