MAX16060ATE+T
IC SUPERVISOR 4 CHANNEL 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX16060ATE-T is a multi-voltage supervisor designed for robust system monitoring. This component features four independent monitoring channels with configurable voltage thresholds at 1.8V, 2.5V, 3.3V, and an adjustable setting. The output stage offers open-drain or open-collector capability, supporting active-low reset signals with a minimum timeout of 140ms, which is also adjustable.

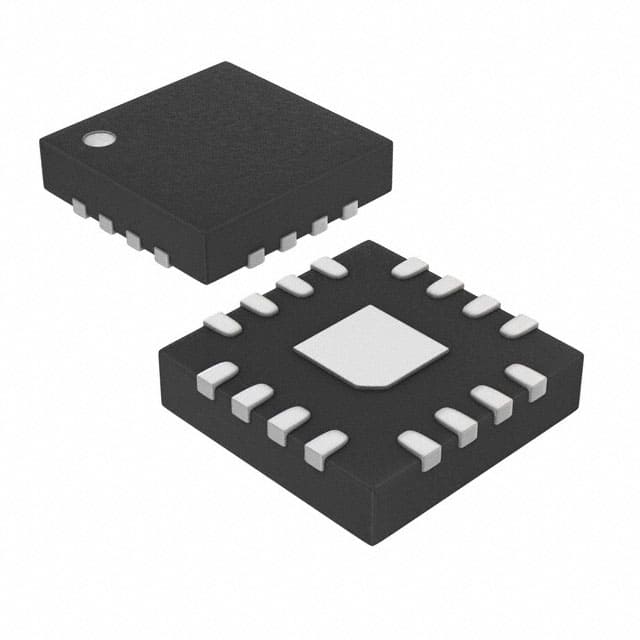

Packaged in a compact 16-TQFN (4x4) with an exposed pad, the MAX16060ATE-T is designed for surface-mount applications. Its operating temperature range of -40°C to 125°C makes it suitable for demanding environments. This supervisor is commonly utilized in industrial control systems, automotive electronics, and communication infrastructure where reliable power supply monitoring and system reset are critical. The component is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Multi-Voltage Supervisor |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Voltages Monitored | 4 |
| Reset Timeout | 140ms/Adjustable Minimum |
| Voltage - Threshold | 1.8V, 2.5V, 3.3V, Adj |
| Supplier Device Package | 16-TQFN (4x4) |
| Programmable | Not Verified |
