MAX16047ETN+T
IC SUPERVISOR 12 CHANNEL 56TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More

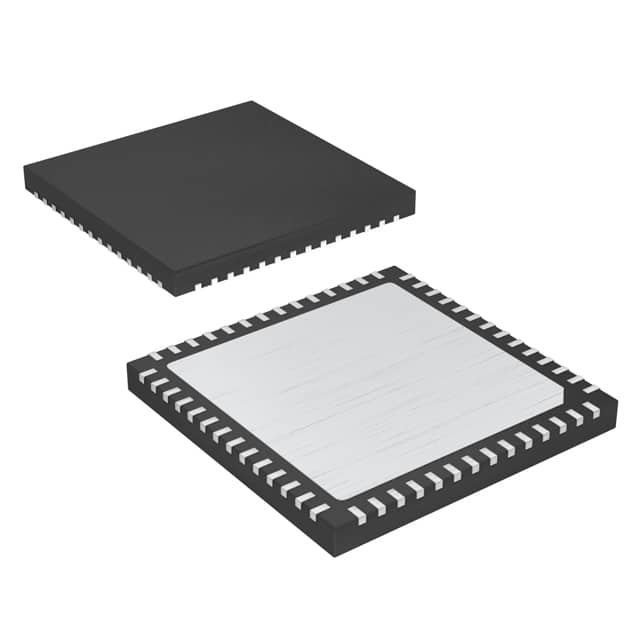

Analog Devices Inc./Maxim Integrated's MAX16047ETN-T is a versatile 12-channel system manager designed for robust power-supply monitoring and system reset control. This component features a 56-TQFN (8x8) package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. The MAX16047ETN-T offers flexible voltage monitoring with adjustable or selectable thresholds, ensuring precise control over system power rails. Its reset output can be configured as active low and includes an adjustable timeout feature for reliable system initialization. The output stage supports both open-drain and push-pull configurations, providing flexibility in system design. This device is commonly employed in industrial automation, automotive systems, and high-reliability computing platforms where precise power management and system stability are critical. The operating temperature range of -40°C to 85°C (TA) makes it suitable for demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain, Push-Pull |
| Type | System Manager |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 12 |
| Reset Timeout | Adjustable/Selectable |
| Voltage - Threshold | Adjustable/Selectable |
| Supplier Device Package | 56-TQFN (8x8) |
| Programmable | Not Verified |
