DS1816-20+

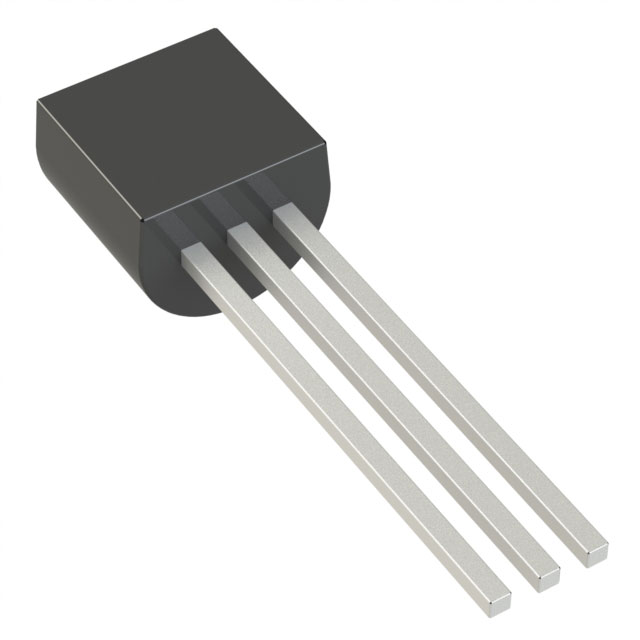

IC SUPERVISOR 1 CHANNEL TO92-3Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Supervisors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1816-20- is a single-channel EconoReset supervisor IC with an open-drain or open-collector output. This component monitors a single voltage threshold of 2.55V and provides an active-low reset signal with a minimum timeout of 100ms. Designed for through-hole mounting, the DS1816-20- is supplied in a TO-92-3 package, also known as TO-226-3. Its operating temperature range is -40°C to 85°C. This device is suitable for applications requiring reliable power-on reset functionality, often found in consumer electronics, industrial control systems, and automotive applications where precise voltage monitoring and reset assertion are critical for system stability.
Additional Information
Series: EconoResetRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 100ms Minimum |
| Voltage - Threshold | 2.55V |
| Supplier Device Package | TO-92-3 |
| Programmable | Not Verified |
