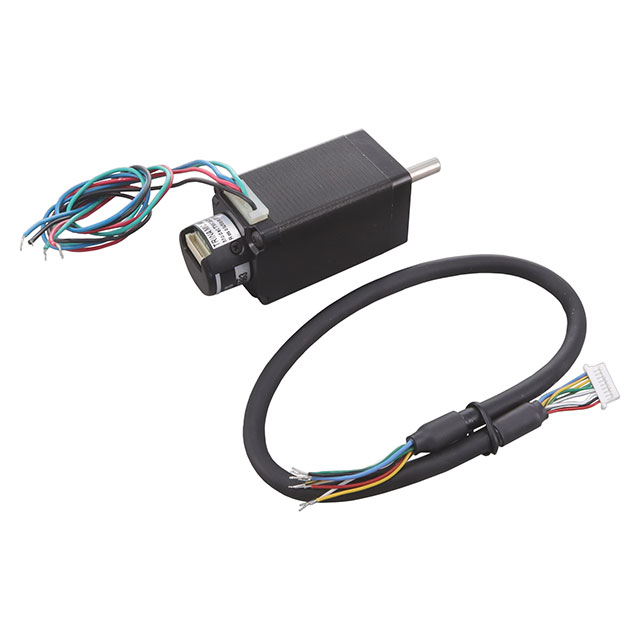

QSH2818-51-07-012-8K
STEP MOTOR HYBRID NEMA11 ENC 819Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Bipolar Stepper Motor Hybrid Frame Size 11 200.0 Step 670 mA 6.2VDC
Additional Information
Series: QMot QSH2818RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 6.2VDC |
| Size / Dimension | Square - 1.100"" x 1.100"" (28.00mm x 28.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 17 / 120 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 0.906"" (23.00mm) |
| Length - Shaft and Bearing | 0.787"" (20.00mm) |
| NEMA Frame Size | 11 |
| Current Rating (Amps) | 670 mA |
| Coil Resistance | 9.2 Ohms |
| Steps per Revolution | 200.0 |
Request a Quote
Clients Also Buy

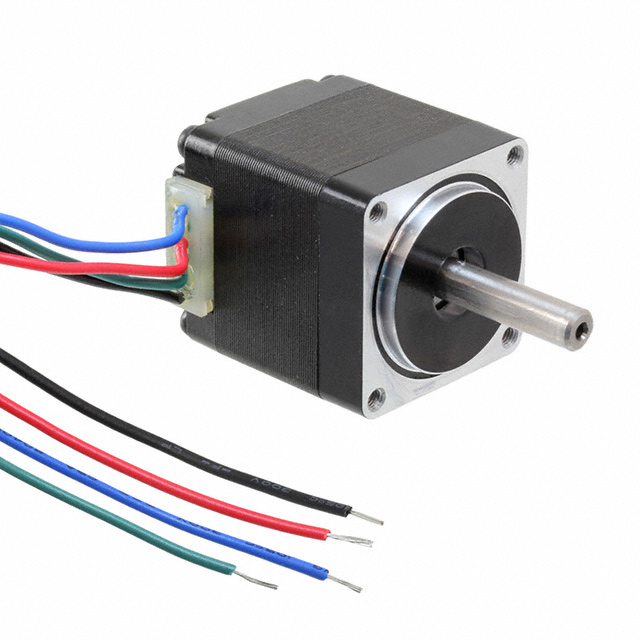

QSH2818-32-07-006
STEP MOTOR HYBRID BIPOLAR 3.8V

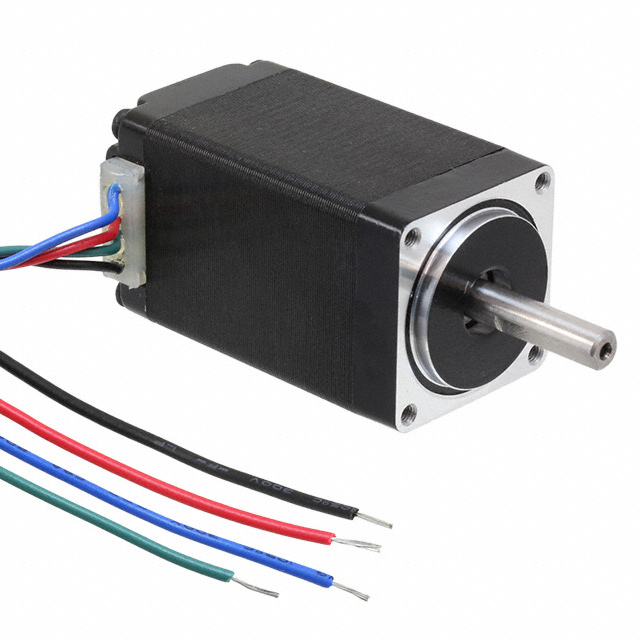

QSH2818-51-07-012
STEP MOTOR HYBRID BIPOLAR 6.2V

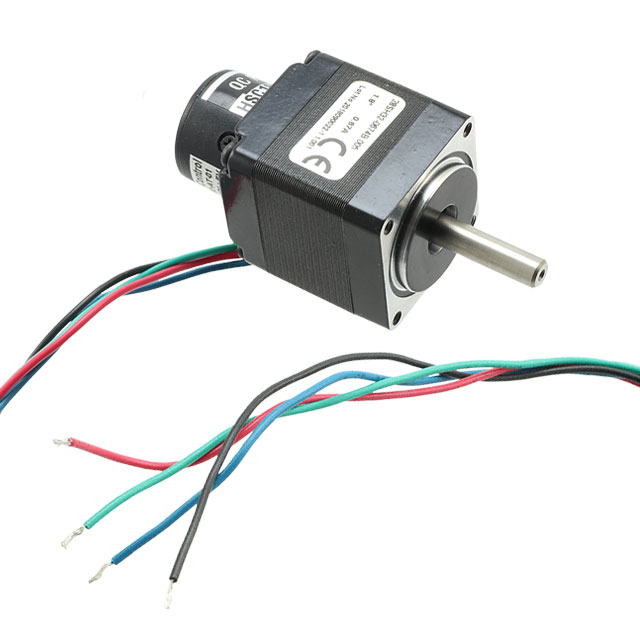

QSH2818-32-07-006-8K
