PD86-3-1378-CANOPEN
PANDRIVE NEMA34, 48V, 7NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

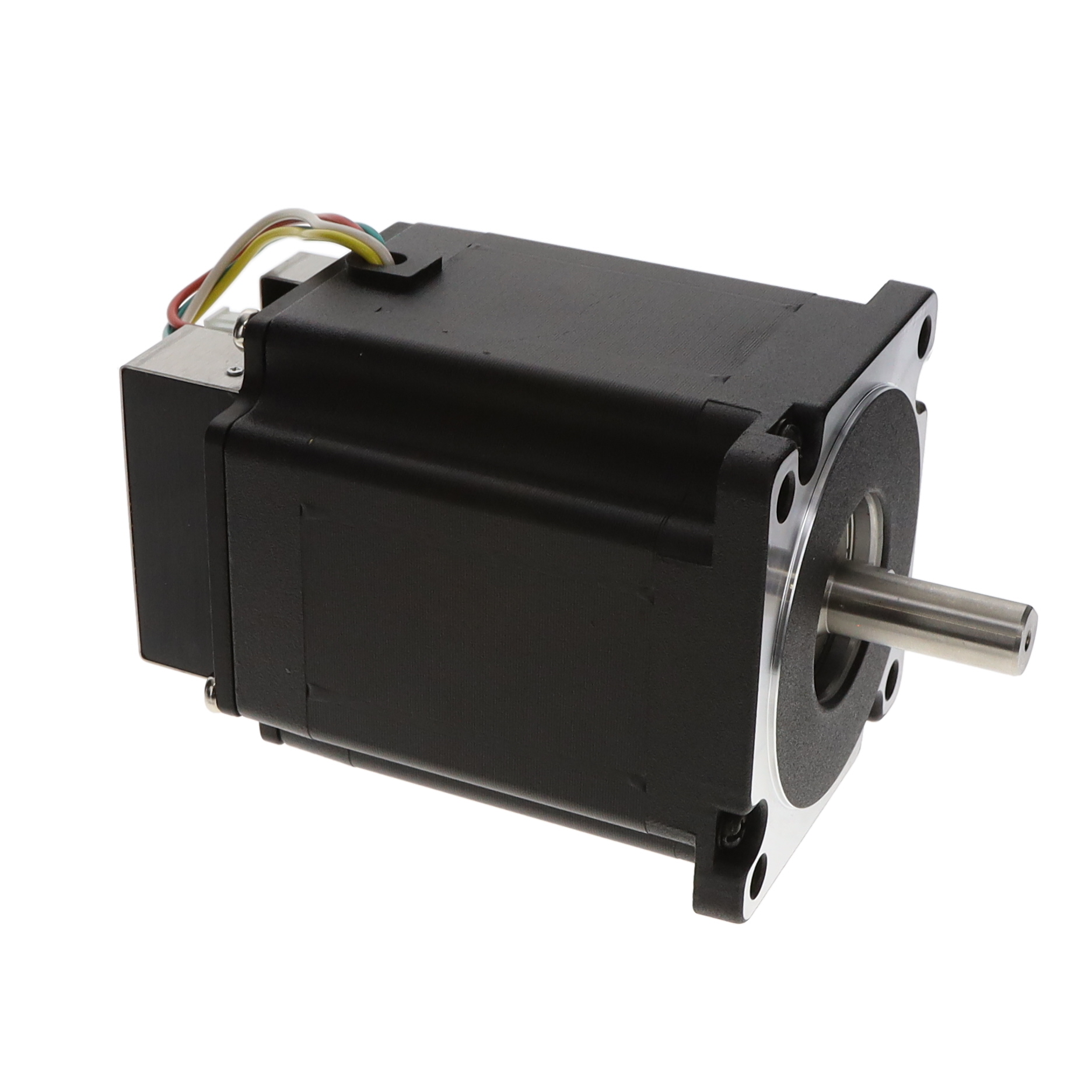

Analog Devices Inc./Maxim Integrated PANdrive™ PD86-3-1378-CANOPEN is a bipolar stepper motor with a NEMA frame size of 24, featuring a 1.8° step angle and 200 steps per revolution. This hybrid motor delivers a holding torque of 7000 mNm (991.28 oz-in) and a rated current of 5.5 A. The coil resistance is 0.45 Ohms, with a rated voltage of 2.56VDC. Designed for ease of integration, it includes an integrated controller and a flatted shaft for secure mounting. Operating within a temperature range of -20°C to 50°C, its dimensions are 60.00mm x 60.00mm. This component is suitable for industrial automation, robotics, and motion control applications.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.56VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 5.5 A |
| Coil Resistance | 0.45 Ohms |
| Steps per Revolution | 200.0 |
