PD86-3-1278-CANOPEN
PANDRIVE NEMA34, 48V, 7NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

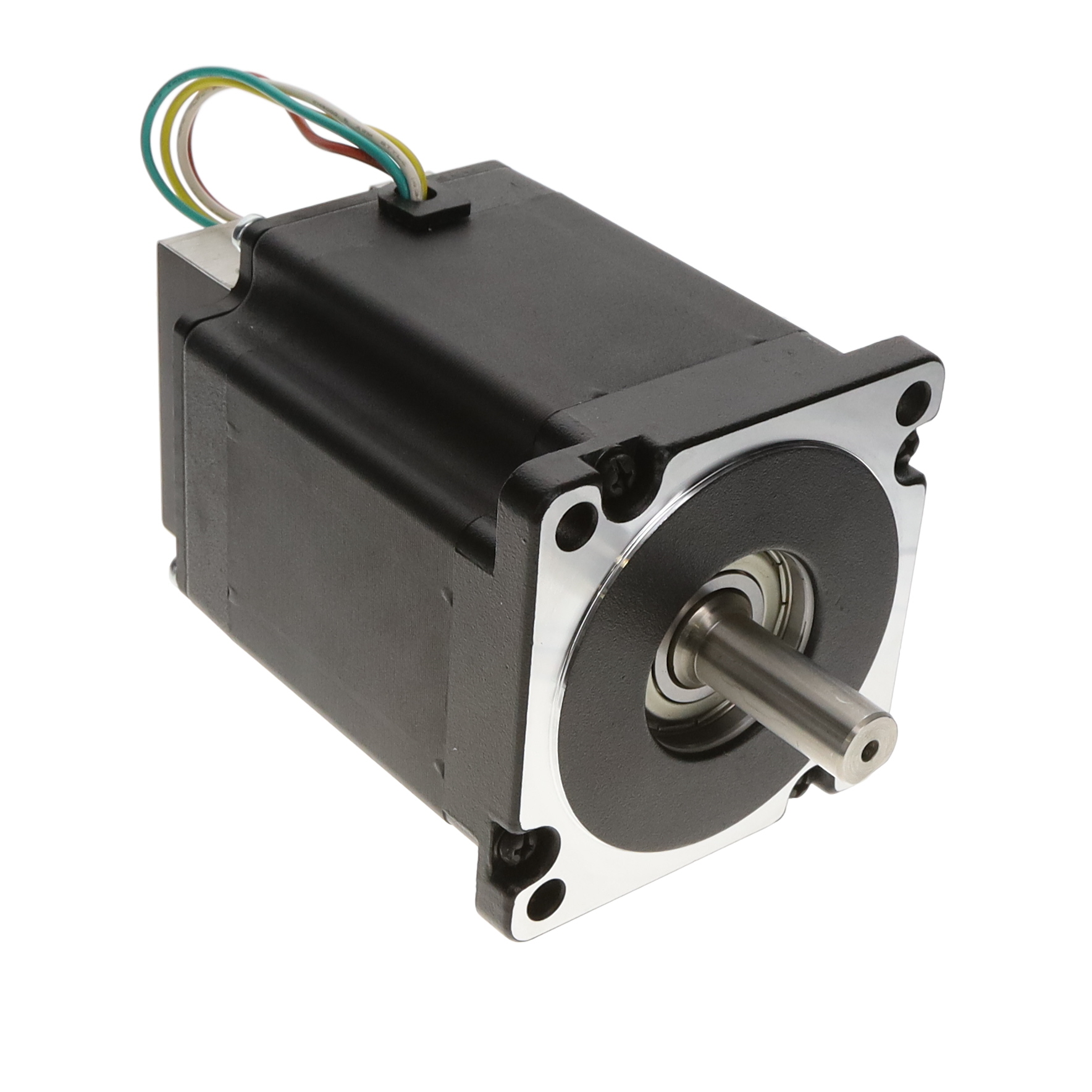

Analog Devices Inc./Maxim Integrated PANdrive™ PD86-3-1278-CANOPEN is a bipolar stepper motor designed for high-performance motion control applications. This NEMA frame size 34 motor offers a holding torque of 7 Nm and a rated current of 5.5 A. It features a step angle of 1.8° and provides 200 steps per revolution for precise positioning. The motor operates at 2.56 VDC with a coil resistance of 0.45 Ohms. Key features include an integrated controller for simplified system design and a flatted shaft for secure coupling. The PD86-3-1278-CANOPEN is suitable for demanding industrial automation, robotics, and medical equipment sectors where accuracy and reliability are paramount.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.56VDC |
| Size / Dimension | Square - 3.386"" x 3.386"" (86.00mm x 86.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 34 |
| Current Rating (Amps) | 5.5 A |
| Coil Resistance | 0.45 Ohms |
| Steps per Revolution | 200.0 |
