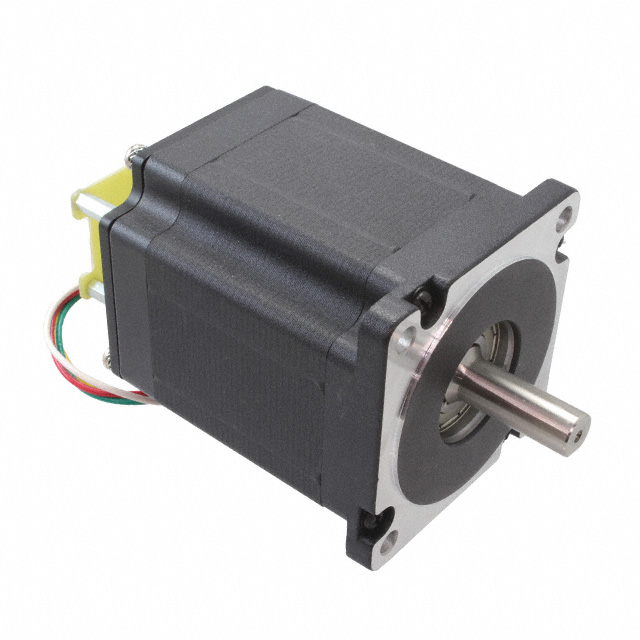

PD86-3-1260-TMCL
PANDRIVE NEMA34, 48V, 7.0NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD86-3-1260-TMCL is a bipolar stepper motor designed for precision motion control. This hybrid frame size 34 motor offers a holding torque of 7000 mNm (991.28 oz-in) and a rated voltage of 48VDC. With 200 steps per revolution and a step angle of 1.8°, it ensures smooth and accurate positioning. The motor features a 0.45 Ohm coil resistance and a current rating of 5.5A per phase. Its integrated controller simplifies system design, and the flatted shaft facilitates easy mounting. The motor's dimensions are 3.382" x 3.382" (85.90mm x 85.90mm) with a shaft diameter of 0.500" (12.70mm) and a shaft length of 1.310" (33.27mm). Mounting hole spacing is 2.740" (69.60mm). This component is suitable for applications in robotics, automation, and industrial machinery.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 3.382"" x 3.382"" (85.90mm x 85.90mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.500"" (12.70mm) |
| Mounting Hole Spacing | 2.740"" (69.60mm) |
| Length - Shaft and Bearing | 1.310"" (33.27mm) |
| NEMA Frame Size | 34 |
| Current Rating (Amps) | 5.5 A |
| Coil Resistance | 0.45 Ohms |
| Steps per Revolution | 200.0 |
