PD86-3-1180-CANOPEN

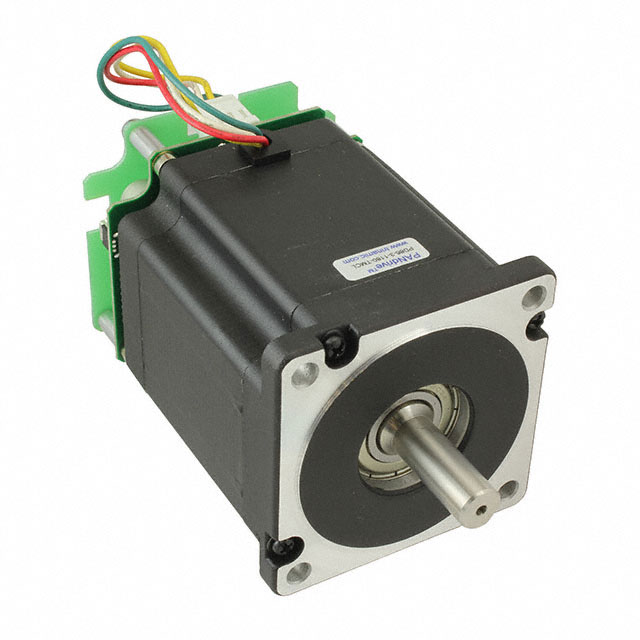

STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD86-3-1180-CANopen is a bipolar stepper motor designed for precise motion control applications. This hybrid motor features a NEMA frame size 34 with dimensions of 3.382" x 3.382" (85.90mm x 85.90mm). It offers 200 steps per revolution with a step angle of 1.8°, delivering exceptional positional accuracy. The motor is rated for a 48VDC supply and can handle a continuous current of 5.5 A per phase, with a coil resistance of 0.45 Ohms. Its holding torque is 991.28 oz-in (7000 mNm). The PD86-3-1180-CANopen includes an integrated controller and a flatted shaft measuring 0.500" (12.70mm) in diameter and 1.310" (33.27mm) in length, with wire leads and a connector for termination. Mounting hole spacing is 2.740" (69.60mm). This component is suitable for use in automation, robotics, and industrial machinery requiring high-performance stepper motor functionality.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 75 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 3.382"" x 3.382"" (85.90mm x 85.90mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.500"" (12.70mm) |
| Mounting Hole Spacing | 2.740"" (69.60mm) |
| Length - Shaft and Bearing | 1.310"" (33.27mm) |
| NEMA Frame Size | 34 |
| Current Rating (Amps) | 5.5 A |
| Coil Resistance | 0.45 Ohms |
| Steps per Revolution | 200.0 |
