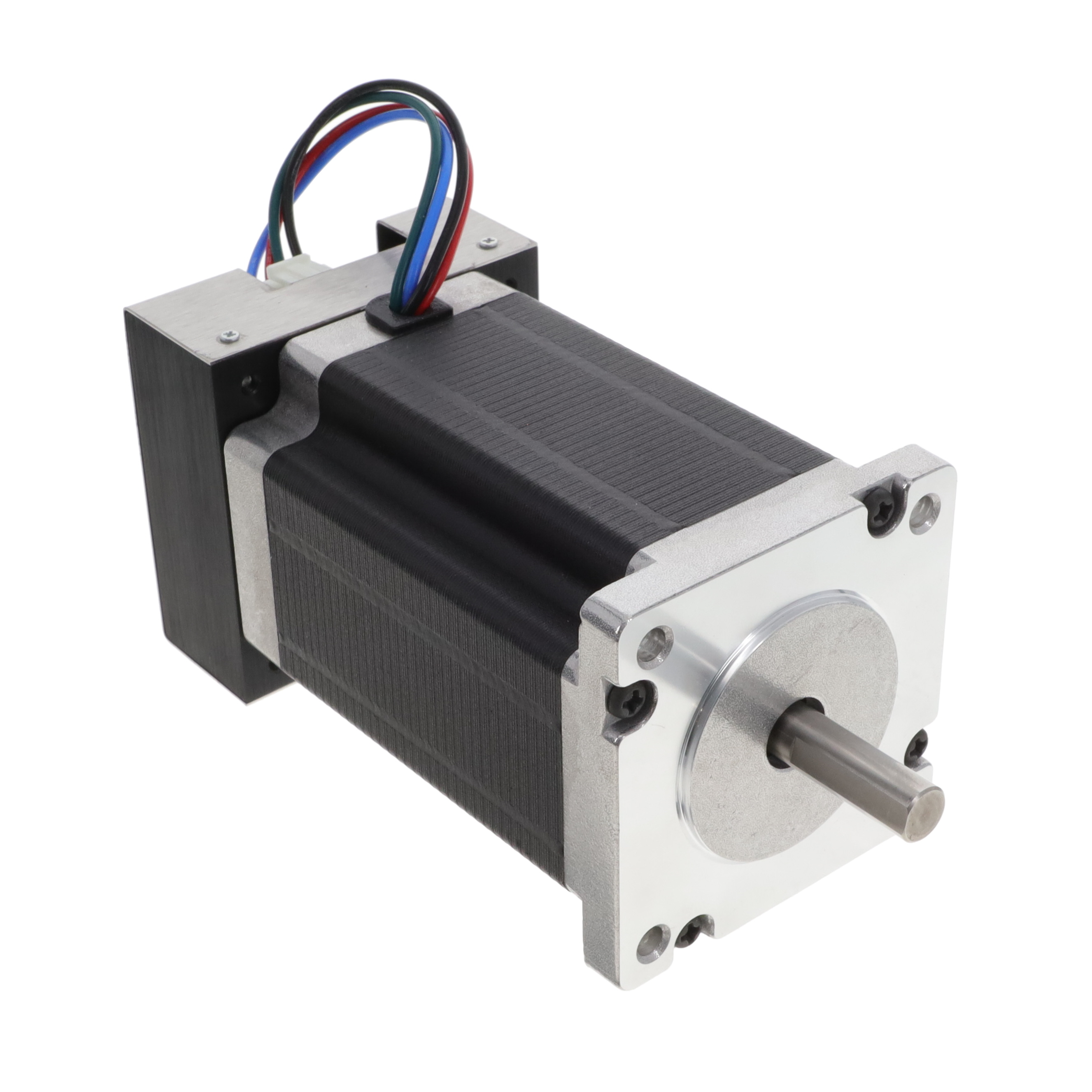

PD60-4H-1378-TMCL
PANDRIVE NEMA24, 48V, 3.1NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD60-4H-1378-TMCL is a bipolar stepper motor designed for high-performance motion control applications. This hybrid stepper motor features a NEMA frame size of 24, with dimensions of 60.00mm x 60.00mm. It delivers a holding torque of 424.93 oz-in (3000 mNm) and a rated current of 9 A per phase, with a coil resistance of 0.15 Ohms. The motor offers a step angle of 1.8°, resulting in 200 steps per revolution for precise positioning.
The PD60-4H-1378-TMCL is equipped with an integrated controller and a flatted shaft for convenient mounting. Its bipolar coil type and a rated voltage of 2.1VDC are optimized for efficient operation. This component is suitable for use in industrial automation, robotics, and other applications demanding accurate and reliable stepper motor control. The operating temperature range is -20°C to 50°C, and it is supplied in bulk packaging with wire leads and a connector termination style.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.1VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 9 A |
| Coil Resistance | 0.15 Ohms |
| Steps per Revolution | 200.0 |
