PD60-4H-1378-CANOPEN

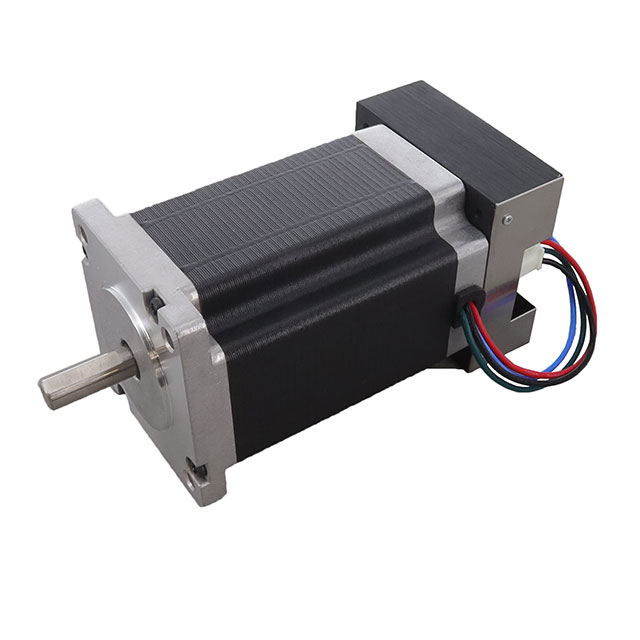

PANDRIVE NEMA24, 48V, 3.1NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD60-4H-1378-CANOPEN is a bipolar stepper motor featuring a NEMA 24 frame size, a 2.1VDC rated voltage, and a 1.8° step angle, providing 200 steps per revolution. This hybrid motor delivers a holding torque of 424.93 oz-in (3000 mNm) and a current rating of 9A per coil. Designed with integrated controller functionality and a flatted shaft, it offers enhanced performance and integration capabilities. The motor operates within a temperature range of -20°C to 50°C and has a coil resistance of 0.15 Ohms. Its square dimensions are 60.00mm x 60.00mm. This component is commonly utilized in industrial automation, robotics, and motion control applications requiring precise and reliable positioning.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.1VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 9 A |
| Coil Resistance | 0.15 Ohms |
| Steps per Revolution | 200.0 |
