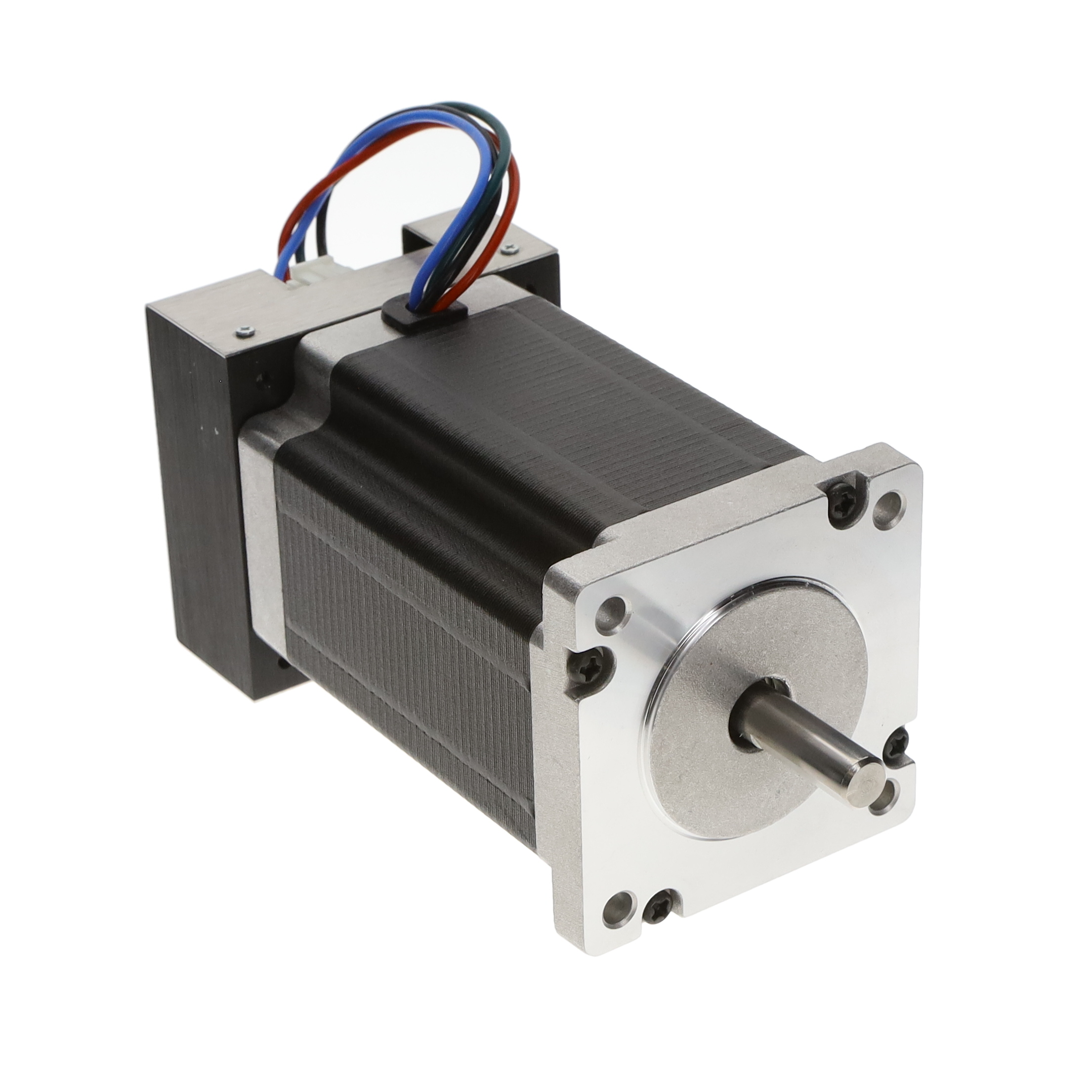

PD60-4H-1278-TMCL
PANDRIVE NEMA24, 48V, 3NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD60-4H-1278-TMCL is a bipolar stepper motor with a NEMA 24 frame size, delivering 3 Nm holding torque. This hybrid motor features 200 steps per revolution, resulting in a 1.8° step angle for precise positioning. It operates with a 9 A current rating and a 2.1 VDC coil voltage, exhibiting a coil resistance of 0.15 Ohms. The PD60-4H-1278-TMCL is designed with an integrated controller and a flatted shaft for enhanced functionality. Its dimensions are 86.00mm x 86.00mm (3.386" x 3.386") square. The operating temperature range is -20°C to 50°C. This component is commonly utilized in industrial automation, robotics, and motion control applications requiring accurate and reliable stepper motor performance.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.1VDC |
| Size / Dimension | Square - 3.386"" x 3.386"" (86.00mm x 86.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 424.93 / 3000 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 9 A |
| Coil Resistance | 0.15 Ohms |
| Steps per Revolution | 200.0 |
