PD60-4-1378-TMCL
PANDRIVE NEMA24, 48V, 3.1NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

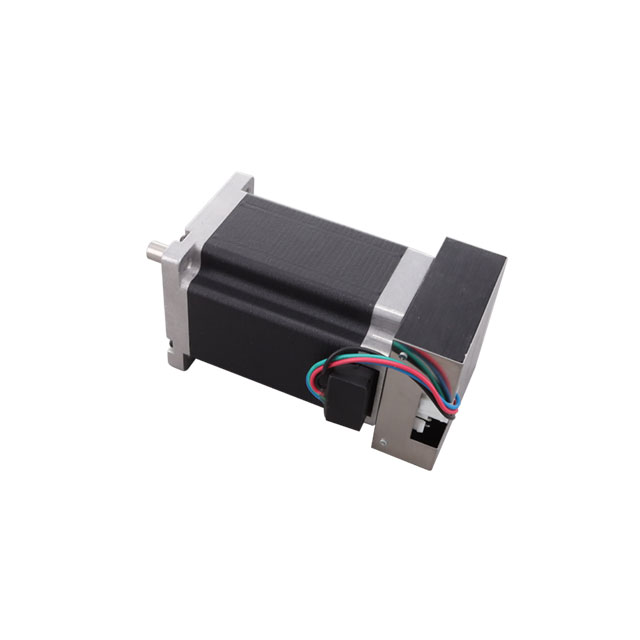

Analog Devices Inc./Maxim Integrated PANdrive™ PD60-4-1378-TMCL is a bipolar stepper motor with a NEMA frame size of 24. This hybrid motor features an integrated controller and a flatted shaft, offering 200 steps per revolution for a 1.8° step angle. It is rated for 4.17VDC and has a current rating of 2.8A per phase, with a coil resistance of 1.5 Ohms. The motor delivers a holding torque of 438.99 oz-in (3100 mNm). Its dimensions are 60.00mm x 60.00mm. This component is suitable for applications in industrial automation, robotics, and motion control systems. The operating temperature range is -20°C to 50°C. Packaging is provided in bulk.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 4.17VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 1.5 Ohms |
| Steps per Revolution | 200.0 |
