PD60-4-1260-CANOPEN
PANDRIVE NEMA24, 48V, 3.1NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

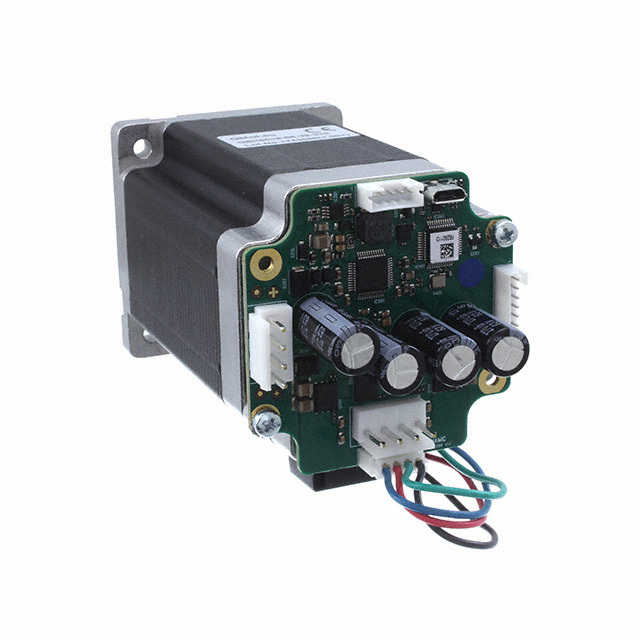

Analog Devices Inc./Maxim Integrated PANdrive™ PD60-4-1260-CANOPEN is a bipolar stepper motor with a NEMA 24 frame size. This hybrid motor delivers a holding torque of 438.99 oz-in (3100 mNm) and operates with a rated voltage of 6.8VDC and a current rating of 2.8A per coil. Featuring an integrated controller and a flatted shaft with an 8.00mm diameter, it offers 200 steps per revolution with a 1.8° step angle. The motor's dimensions are 60.00mm x 60.00mm, with a shaft and bearing length of 24.00mm and mounting hole spacing of 47.14mm. Designed for applications requiring precise motion control, this component is suitable for industrial automation and robotics. The PD60-4-1260-CANOPEN is supplied in bulk packaging and operates within an environmental temperature range of -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 6.8VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.315"" (8.00mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
