PD60-4-1160-TMCL
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

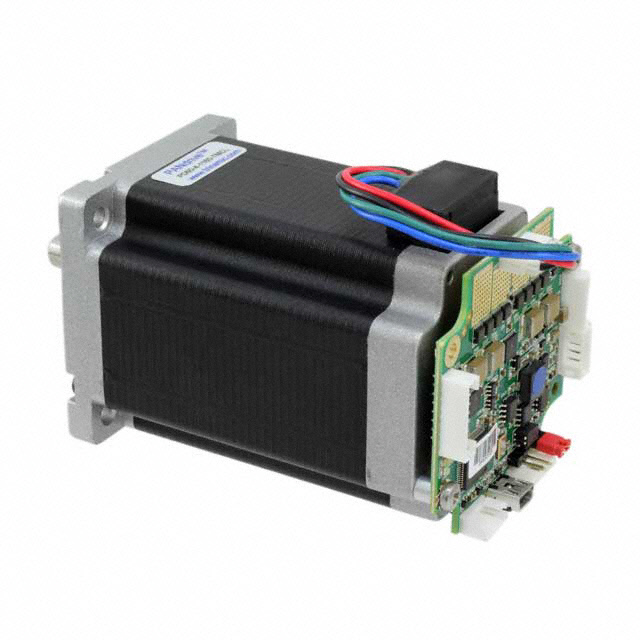

Analog Devices Inc./Maxim Integrated's PANdrive™ series PD60-4-1160-TMCL is a hybrid, bipolar stepper motor designed for high-performance motion control applications. This NEMA frame size 24 motor features a 1.8° step angle, providing 200 steps per revolution for precise positioning. It operates with a 48VDC rated voltage and delivers a substantial holding torque of 3100 mNm. The motor is rated for a 2.8 A current per coil and includes integrated controller functionality for simplified system design. Its 60mm x 60mm square frame and 8mm flatted shaft offer versatile mounting and integration options. The PD60-4-1160-TMCL is suitable for use in industrial automation, robotics, and other sectors requiring accurate and reliable stepper motor performance.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.315"" (8.00mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
