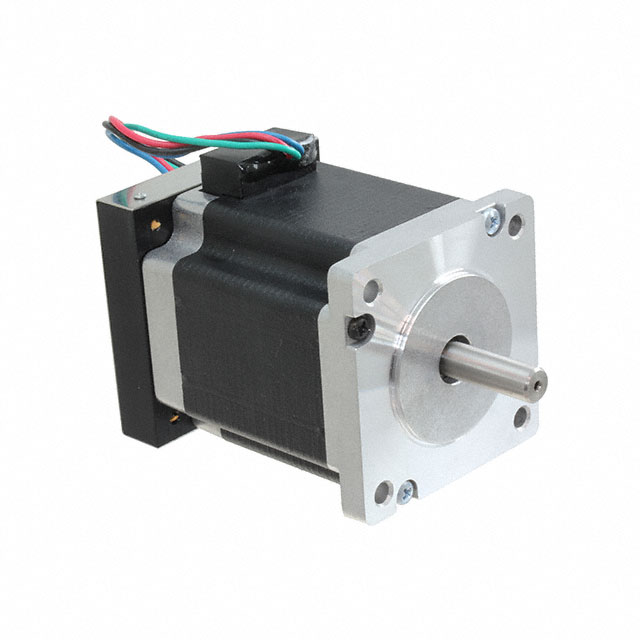

PD60-4-1076
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ series bipolar stepper motor, part number PD60-4-1076. This hybrid stepper motor features a NEMA frame size of 24, with dimensions of 60.00mm x 60.00mm. It operates with a rated voltage of 4.17VDC and a current rating of 2.8A per phase. The motor offers a step angle of 1.8°, resulting in 200.0 steps per revolution. It boasts a holding torque of 3100 mNm. Key features include integrated controller functionality and a flatted shaft. The coil resistance is 1.5 Ohms, with an accuracy of ±5%. This component is suitable for applications in industrial automation and robotics. Termination is via wire leads with a connector. Operating temperature range is -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 4.17VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 1.5 Ohms |
| Steps per Revolution | 200.0 |
