PD60-3-1378-CANOPEN
PANDRIVE NEMA24, 48V, 2.1NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

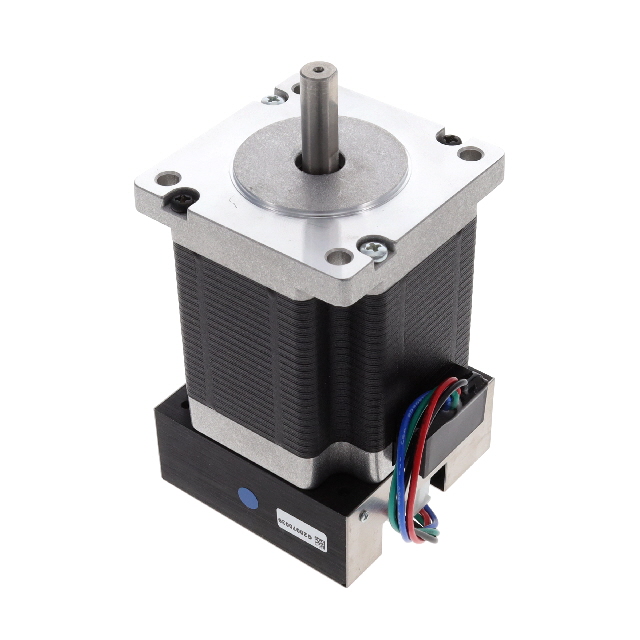

Analog Devices Inc./Maxim Integrated PANdrive™ PD60-3-1378-CANOPEN is a bipolar stepper motor designed for demanding applications. This hybrid stepper motor features a NEMA 24 frame size with dimensions of 60.00mm x 60.00mm. It delivers a holding torque of 2100 mNm (297.4 oz-in) and a rated current of 2.8 A per phase. The motor has a step angle of 1.8° and 200 steps per revolution, ensuring precise positioning. With a coil resistance of 1.2 Ohms and a rated voltage of 3.36VDC, it is optimized for efficient operation. The PD60-3-1378-CANOPEN includes an integrated controller and a flatted shaft for convenient mounting. Its operating temperature range is -20°C to 50°C. This component is suitable for use in industrial automation, robotics, and motion control systems.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 3.36VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 297.4 / 2100 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 1.2 Ohms |
| Steps per Revolution | 200.0 |
