PD60-3-1276-CANOPEN
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

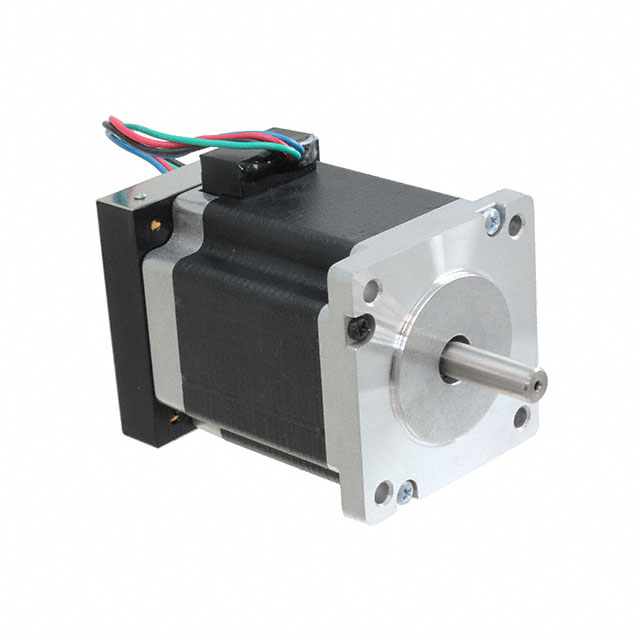

Analog Devices Inc./Maxim Integrated PANdrive™ Series stepper motor, part number PD60-3-1276-CANOPEN. This bipolar hybrid stepper motor features a NEMA frame size of 24, delivering 200 steps per revolution with a 1.8° step angle. It operates with a rated voltage of 3.36VDC and a current rating of 2.8A per phase. The motor offers a holding torque of 2100 mNm (297.38 oz-in) and a coil resistance of 1.2 Ohms. Its dimensions are 60.00mm x 60.00mm. This component is suitable for applications in industrial automation and robotics. It includes an integrated controller and a flatted shaft with wire leads and a connector termination. The operating temperature range is -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 3.36VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 297.38 / 2100 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 1.2 Ohms |
| Steps per Revolution | 200.0 |
