PD60-3-1160-TMCL
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

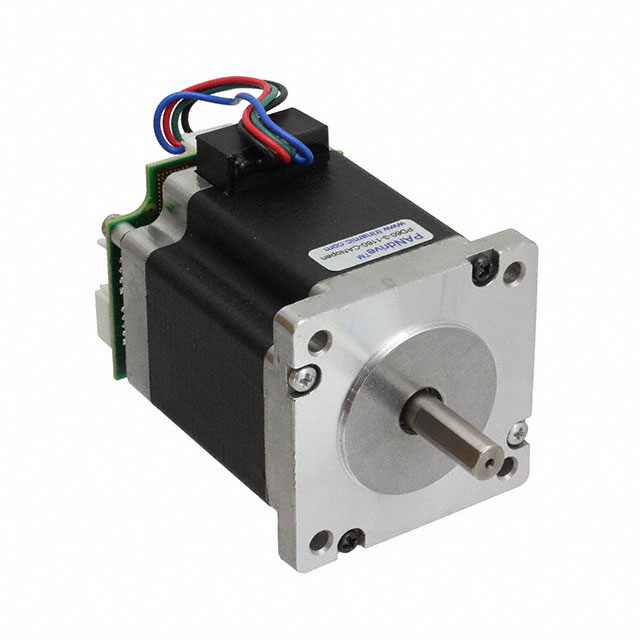

Analog Devices Inc./Maxim Integrated PANdrive™ PD60-3-1160-TMCL is a bipolar stepper motor designed for demanding motion control applications. This hybrid motor features a NEMA frame size 24, with dimensions of 60.00mm x 60.00mm and a shaft diameter of 8.00mm. It delivers a holding torque of 2100 mNm and operates with a rated voltage of 48VDC. With a step angle of 1.8° and 200 steps per revolution, it provides precise positioning capabilities. The motor is equipped with integrated controller features and a flatted shaft for simplified mounting. Termination is via wire leads with a connector. This component is suitable for use in industrial automation and robotics.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 297.38 / 2100 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.315"" (8.00mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
