PD60-3-1160-CANOPEN
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

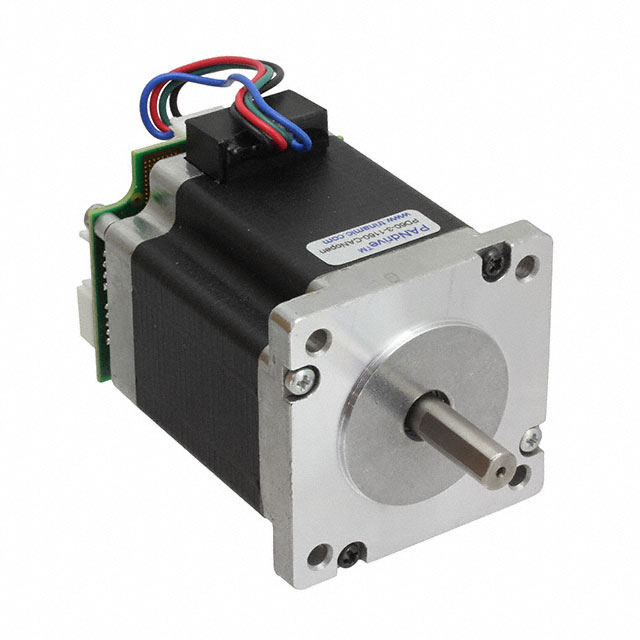

Analog Devices Inc./Maxim Integrated PANdrive™ PD60-3-1160-CANOPEN is a bipolar hybrid stepper motor designed for precise motion control applications. This NEMA frame size 24 motor features a 1.8° step angle, delivering 200 steps per revolution for detailed positioning. It operates at a 48VDC rated voltage and offers a current rating of 2.8 amps per phase. The motor is equipped with integrated controller functionality and a flatted shaft measuring 0.315 inches in diameter, with a shaft and bearing length of 0.945 inches. Its square dimensions are 2.362 inches by 2.362 inches, with mounting hole spacing at 1.856 inches. Termination is via wire leads with a connector. This component is suitable for industrial automation, robotics, and medical equipment sectors.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 297.38 / 2100 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.315"" (8.00mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
