PD57-2-1378-TMCL
PANDRIVE NEMA23, 48V, 1.01NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

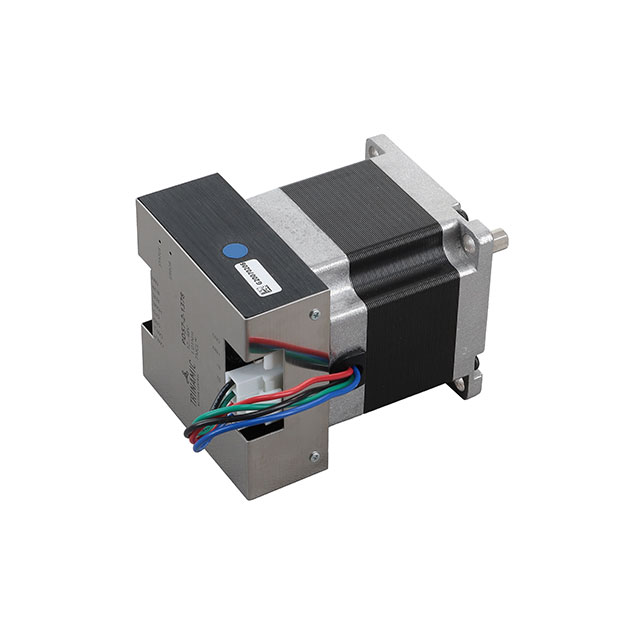

Analog Devices Inc./Maxim Integrated PANdrive™ stepper motor, part number PD57-2-1378-TMCL. This bipolar hybrid motor features a NEMA 23 frame size with a 1.8° step angle, delivering 200 steps per revolution. It is rated for 2.8 A current and 2.3 VDC coil voltage, providing a holding torque of 1.01 kNm. The motor incorporates an integrated controller and a flatted shaft for enhanced functionality. Its dimensions are 60.00mm x 60.00mm. Applications include industrial automation, robotics, and precision motion control systems. The PD57-2-1378-TMCL is supplied in bulk packaging and operates within a temperature range of -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.3VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.03 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 0.8 Ohms |
| Steps per Revolution | 200.0 |
