PD57-2-1260-TMCL
PANDRIVE NEMA23, 48V, 1.01NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

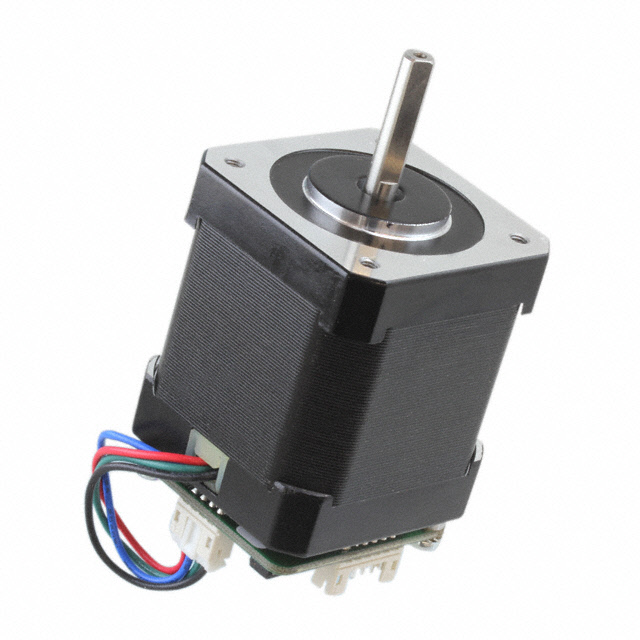

Analog Devices Inc./Maxim Integrated PANdrive™ PD57-2-1260-TMCL is a bipolar stepper motor with a NEMA 23 frame size. This hybrid motor offers 200 steps per revolution, resulting in a 1.8° step angle for precise positioning. It features an integrated controller and delivers a holding torque of 1010 mNm (143.03 oz-in) at a rated current of 2.8 A. The motor operates at 2.3VDC and is designed for applications requiring robust motion control, commonly found in automation, robotics, and industrial equipment. The unit includes wire leads with a connector for termination and has a flatted shaft with a diameter of 0.250" (6.35mm). Its dimensions are 2.362" x 2.362" (60.00mm x 60.00mm) with a mounting hole spacing of 1.856" (47.14mm).
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.3VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.03 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
