PD57-2-1260-CANOPEN
PANDRIVE NEMA23, 48V, 1.01NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

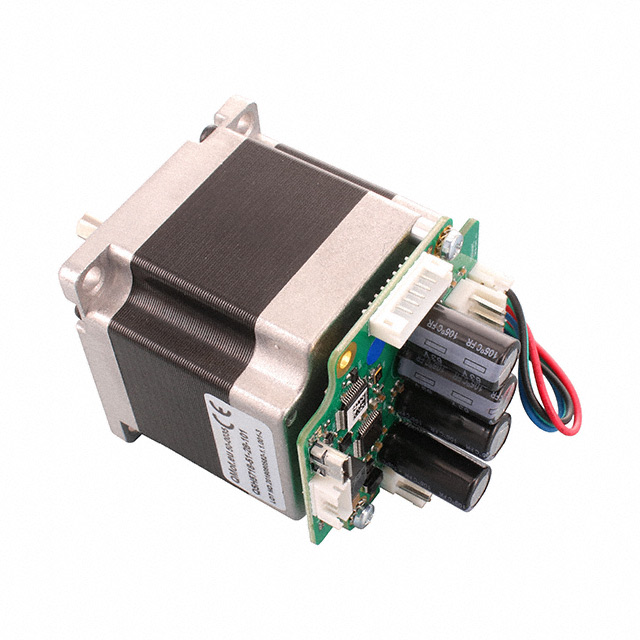

Analog Devices Inc./Maxim Integrated PANdrive™ PD57-2-1260-CANOPEN is a bipolar stepper motor with a NEMA 24 frame size, offering 200 steps per revolution for a 1.8° step angle. This hybrid motor delivers a holding torque of 1010 mNm (143.03 oz-in) at a rated voltage of 2.3VDC and a current rating of 2.8A. The unit features an integrated controller and a flatted shaft with a diameter of 0.250" (6.35mm). Its dimensions are 2.362" x 2.362" (60.00mm x 60.00mm) with mounting hole spacing of 1.856" (47.14mm). Operating temperature ranges from -20°C to 50°C. Termination is via wire leads with a connector. This component is suitable for applications in industrial automation, robotics, and motion control systems.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.3VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.03 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
