PD57-2-1161
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

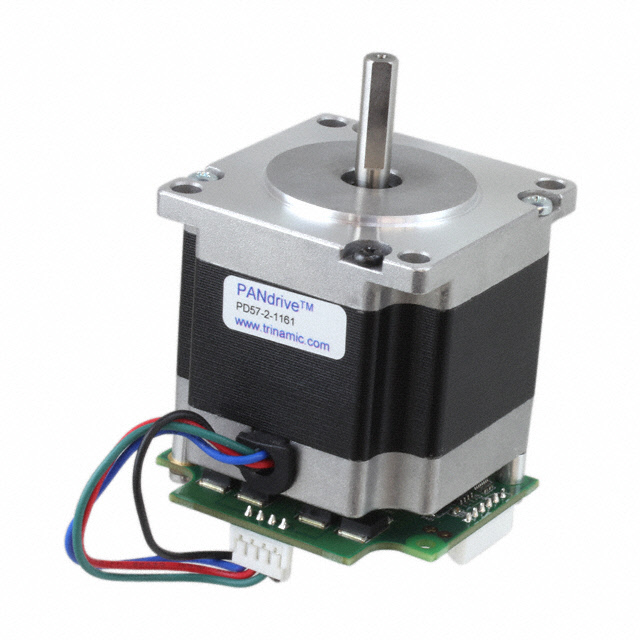

Analog Devices Inc./Maxim Integrated PANdrive™ PD57-2-1161 is a bipolar stepper motor designed for precision motion control applications. This hybrid stepper motor features a NEMA frame size of 24, with dimensions of 2.362" x 2.362" (60.00mm x 60.00mm). It operates at a rated voltage of 24VDC and offers a current rating of 2.8 A per coil. The motor provides 200 steps per revolution with a step angle of 1.8°, ensuring smooth and accurate positioning. Key features include an integrated controller and a flatted shaft with a diameter of 0.250" (6.35mm) and a length of 0.945" (24.00mm). Mounting is facilitated by hole spacing of 1.856" (47.14mm). This component is suitable for use in automation, robotics, and industrial equipment requiring reliable stepper motor performance.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.05 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
