PD57-2-1160-CANOPEN
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

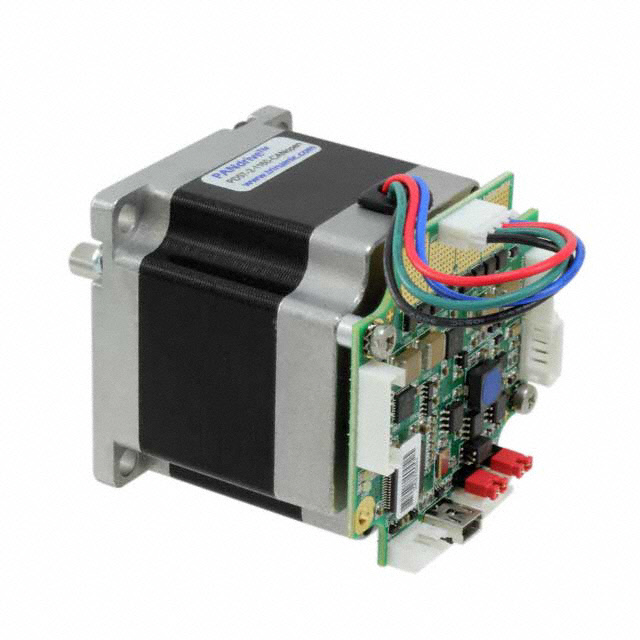

Analog Devices Inc./Maxim Integrated PANdrive™ series PD57-2-1160-CANOPEN is a bipolar stepper motor with NEMA frame size 24. This hybrid motor delivers 200 steps per revolution with a 1.8° step angle, achieving a holding torque of 1010 mNm. It is rated for 48VDC operation and can handle a current of 2.8 A. The motor features an integrated controller and a flatted shaft measuring 6.35mm in diameter and 24.00mm in length. Its dimensions are 60.00mm x 60.00mm, with mounting hole spacing at 47.14mm. Termination is via wire leads with a connector. This component is suitable for applications in industrial automation, robotics, and motion control systems requiring precise positioning and reliable performance.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.05 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 24 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
