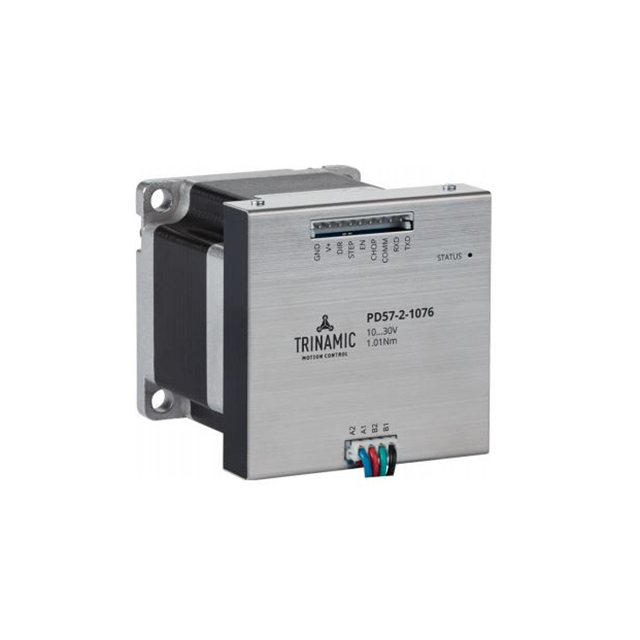

PD57-2-1076
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ stepper motor, part number PD57-2-1076, is a hybrid bipolar motor designed for precise motion control applications. This NEMA Frame Size 23 motor features a 1.8° step angle, providing 200 steps per revolution for 24V operation. It offers a holding torque of 1010 mNm (143.03 oz-in) and a current rating of 2.8 A per phase with a coil resistance of 0.8 Ohms. The motor's dimensions measure 60.00mm x 60.00mm (2.362" x 2.362"). Key features include an integrated controller and a flatted shaft for secure coupling. This component is suitable for industries requiring accurate positioning and controlled movement, such as automation, robotics, and industrial machinery. The operating temperature range is -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.3VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 143.03 / 1010 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Coil Resistance | 0.8 Ohms |
| Steps per Revolution | 200.0 |
