PD57-1-1378-CANOPEN
PANDRIVE NEMA23, 48V, 0.55NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

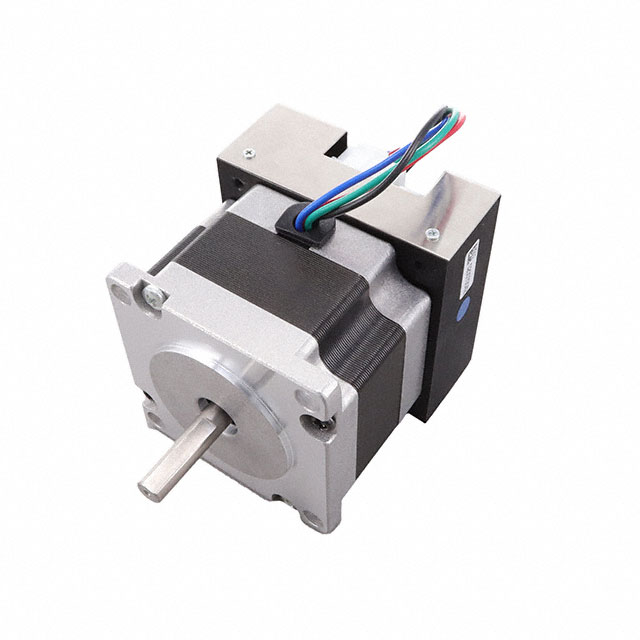

Analog Devices Inc./Maxim Integrated PANdrive™ stepper motor, part number PD57-1-1378-CANOPEN, is a NEMA 23, bipolar, hybrid frame size motor. It features 200 steps per revolution with a 1.8° step angle, offering 77.89 oz-in (550 mNm) of holding torque. This motor is rated for 2.8A coil current and a 2VDC coil voltage. The unit has an integrated controller and a flatted shaft for secure mounting. Operating within a temperature range of -20°C to 50°C, it measures 2.362 inches (60.00mm) square. This component is suitable for applications requiring precise motion control in industrial automation and robotics.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 77.89 / 550 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
