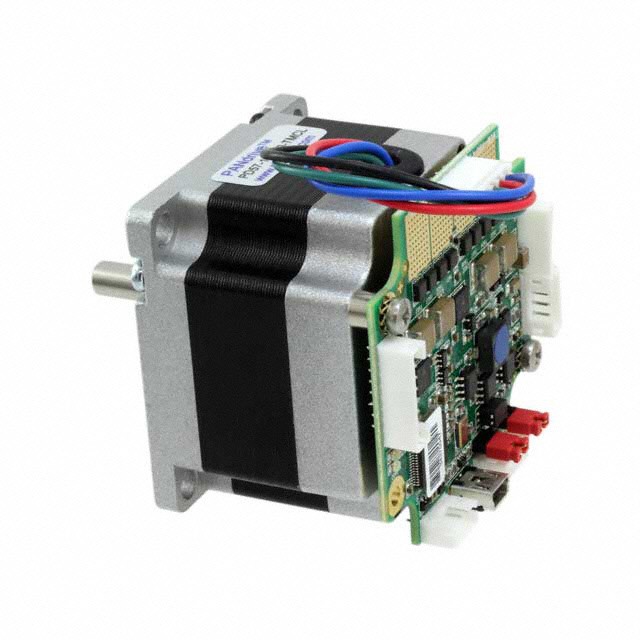

PD57-1-1160-TMCL
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's PANdrive™ series stepper motor, part number PD57-1-1160-TMCL, is a hybrid bipolar stepper motor designed for demanding motion control applications. This NEMA frame size 23 motor features a 1.8° step angle, providing 200 steps per revolution for precise positioning. It offers a robust holding torque of 77.89 oz-in (550 mNm) and a current rating of 2.8 A per phase. The motor operates at a rated voltage of 48VDC and is equipped with integrated controller functionality for simplified system design. Its mechanical specifications include a 0.250" (6.35mm) diameter flatted shaft, a 0.945" (24.00mm) shaft and bearing length, and a 2.362" x 2.362" (60.00mm x 60.00mm) square body with 1.856" (47.14mm) mounting hole spacing. Termination is via wire leads with a connector. This component finds application in industrial automation, robotics, and medical equipment.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 77.89 / 550 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
