PD57-1-1160-CANOPEN
STEPPER MOTOR HYBRID BIPOLAR 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

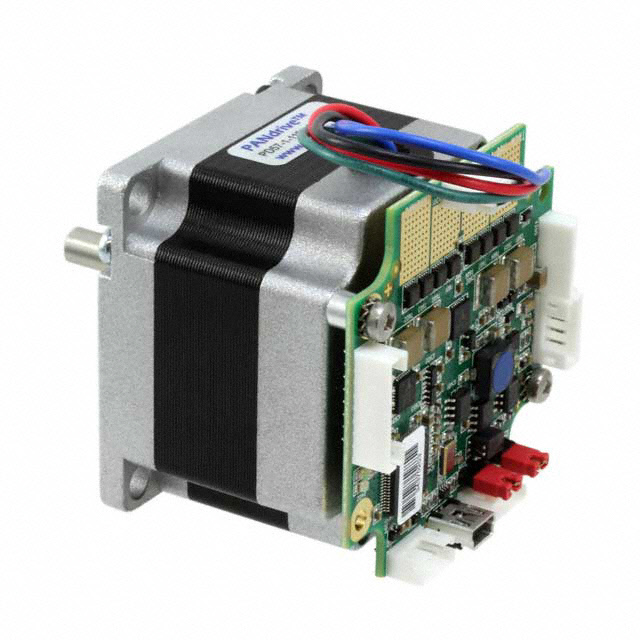

Analog Devices Inc./Maxim Integrated PANdrive™ series PD57-1-1160-CANOPEN is a bipolar stepper motor featuring a NEMA frame size 23 with a square dimension of 2.362" x 2.362" (60.00mm x 60.00mm). This hybrid motor delivers 200.0 steps per revolution with a step angle of 1.8°. It offers a rated voltage of 48VDC and a current rating of 2.8 Amps per coil. The motor includes an integrated controller and a flatted shaft with a diameter of 0.250" (6.35mm) and a length of 0.945" (24.00mm). Holding torque is specified at 77.89 oz-in (550 mNm). Mounting hole spacing is 1.856" (47.14mm). This component is commonly employed in industrial automation, robotics, and medical equipment where precise motion control is critical.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 48VDC |
| Size / Dimension | Square - 2.362"" x 2.362"" (60.00mm x 60.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 77.89 / 550 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.250"" (6.35mm) |
| Mounting Hole Spacing | 1.856"" (47.14mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 23 |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200.0 |
