PD42-4-1370-TMCL
PANDRIVE NEMA17, 24V, 0.7NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

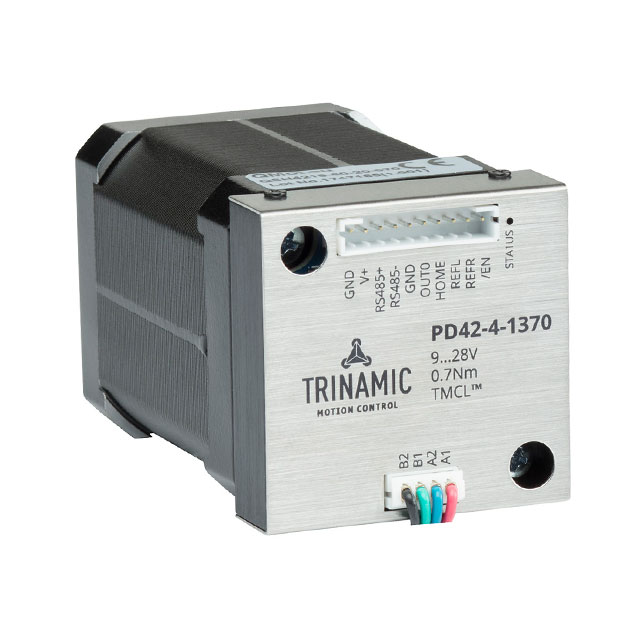

The Analog Devices Inc./Maxim Integrated PANdrive™ PD42-4-1370-TMCL is a bipolar stepper motor featuring a NEMA 17 frame size. This hybrid motor offers 200 steps per revolution, resulting in a 1.8° step angle. It is rated for 2 A per coil and has a coil resistance of 2.3 Ohms, with a rated voltage of 4.4VDC. The motor provides a holding torque of 700 mNm (99.1 oz-in) and a dynamic torque of 0.7 Nm. The PD42-4-1370-TMCL includes an integrated controller and a flatted shaft measuring 5.00mm in diameter and 24.00mm in length. Its dimensions are 42.00mm x 42.00mm, with mounting hole spacing of 31.00mm. This component is suitable for applications in automation, robotics, and industrial control systems, operating within a temperature range of -20°C to 50°C. The termination style is connector, and it is supplied in bulk packaging. Accuracy is within ±5%.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 4.4VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 2 A |
| Coil Resistance | 2.3 Ohms |
| Steps per Revolution | 200.0 |
