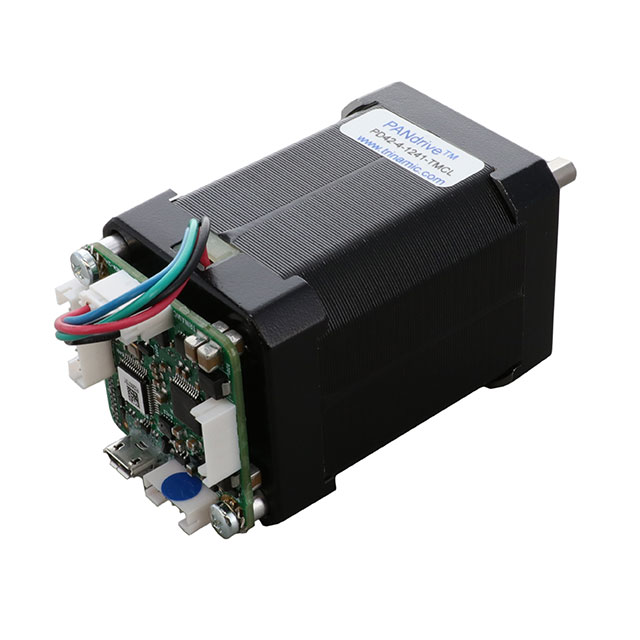

PD42-4-1241-TMCL
PANDRIVE NEMA17, 24V, 0.8NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD42-4-1241-TMCL is a bipolar stepper motor with a NEMA 17 frame size. This hybrid motor features an integrated controller, providing 200 steps per revolution for precise positioning with a 1.8° step angle. The motor is rated for 3.3VDC and has a current rating of 3A per phase, delivering a holding torque of 800 mNm (113.30 oz-in). Its coil resistance is 1.1 Ohms. The shaft is 5.00mm in diameter with a 24.00mm flatted length. Mounting hole spacing is 1.220 inches (31.00mm) and the motor dimensions are 42.00mm x 42.00mm. This component is suitable for applications requiring accurate motion control in automation, robotics, and industrial equipment. It operates within a temperature range of -20°C to 50°C and is supplied in bulk packaging with wire leads and a connector termination style. Accuracy is within ±5%.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 3.3VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 113.30 / 800 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 3 A |
| Coil Resistance | 1.1 Ohms |
| Steps per Revolution | 200.0 |
