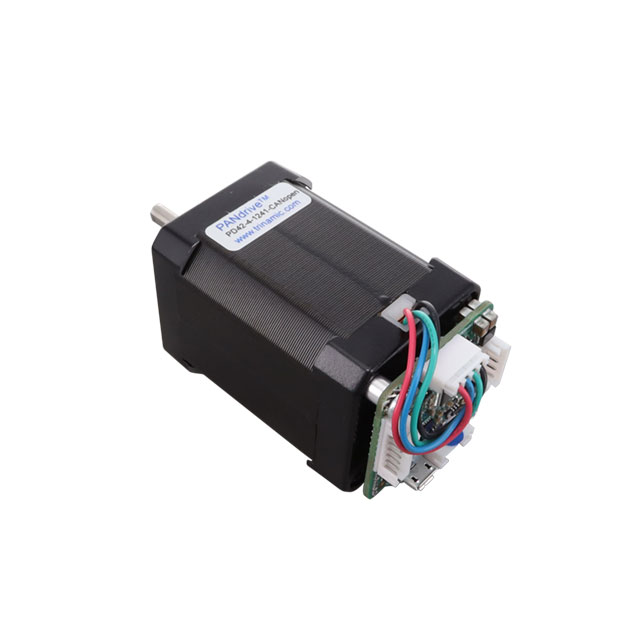

PD42-4-1241-CANOPEN
PANDRIVE NEMA17, 24V, 0.8NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ PD42-4-1241-CANOPEN is a bipolar stepper motor with a NEMA 17 frame size. This hybrid motor delivers 800 mNm of holding torque and features an integrated controller for simplified system design. It operates at 3.3VDC with a 3A current rating per coil, offering 200 steps per revolution for a 1.8° step angle. The motor has a coil resistance of 1.1 Ohms and a ±5% accuracy. Its dimensions are 42.00mm x 42.00mm, with a 5.00mm diameter flatted shaft measuring 24.00mm in length. Mounting hole spacing is 1.220" (31.00mm). Suitable for applications requiring precise motion control in industrial automation and robotics. This component utilizes wire leads with a connector for termination and is supplied in bulk packaging. The operating temperature range is -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 3.3VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 113.30 / 800 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 3 A |
| Coil Resistance | 1.1 Ohms |
| Steps per Revolution | 200.0 |
