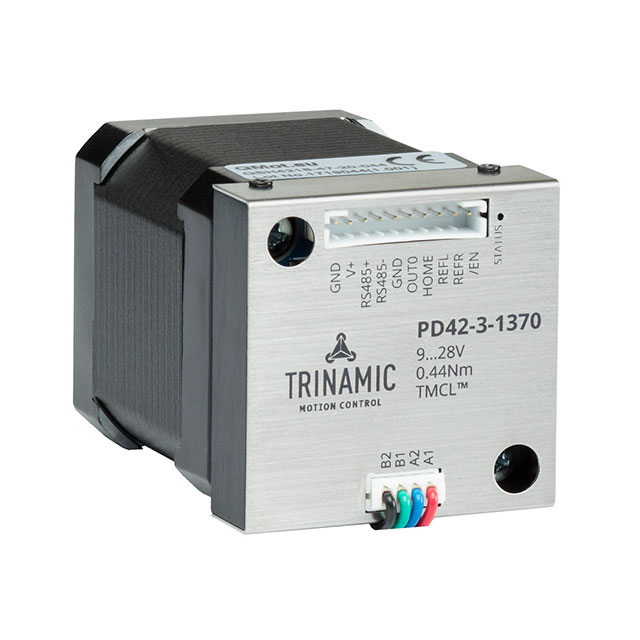

PD42-3-1370-TMCL
PANDRIVE NEMA17, 24V, 0.44NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated PANdrive™ PD42-3-1370-TMCL is a bipolar stepper motor with a NEMA 17 frame size. This hybrid motor features an integrated controller and a flatted shaft with a diameter of 0.197" (5.00mm). It delivers a holding torque of 440 mNm (62.31 oz-in) and a rated voltage of 2.4VDC, with a current rating of 2 A per phase. The motor offers 200 steps per revolution, resulting in a 1.8° step angle, and operates within an ambient temperature range of -20°C to 50°C. Coil resistance is 1.4 Ohms. Mounting hole spacing is 1.220" (31.00mm), and the overall dimensions are 1.654" x 1.654" (42.00mm x 42.00mm). This component is commonly utilized in automation, robotics, and industrial control applications.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.4VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 62.31 / 440 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 2 A |
| Coil Resistance | 1.4 Ohms |
| Steps per Revolution | 200.0 |
