PD42-3-1270-CANOPEN
PANDRIVE NEMA17, 24V, 69 OZ IN/Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

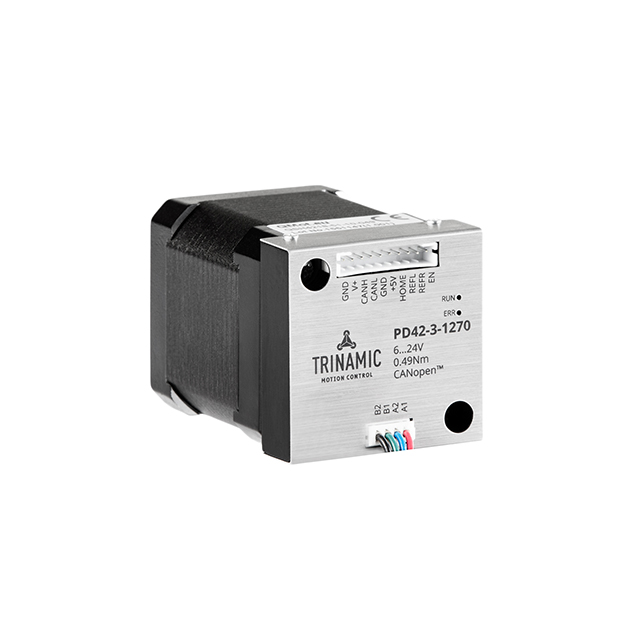

The Analog Devices Inc./Maxim Integrated PANdrive™ PD42-3-1270-CANOPEN is a bipolar stepper motor with a NEMA frame size of 17. This hybrid motor features an integrated controller and a round shaft, offering 200 steps per revolution for a 1.8° step angle. It is rated for 24VDC and a current of 1A, with a coil resistance of 1.4 Ohms. The motor provides a holding torque of 62.3 oz-in (440 mNm) and a step accuracy of ±5%. Its dimensions are 1.654" x 1.654" (42.00mm x 42.00mm) with mounting hole spacing of 1.220" (31.00mm). The operating temperature range is -20°C to 50°C. This component is commonly utilized in industrial automation and robotics applications.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Round Shaft |
| Packaging | Bulk |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 62.3 / 440 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 1 A |
| Coil Resistance | 1.4 Ohms |
| Steps per Revolution | 200.0 |
