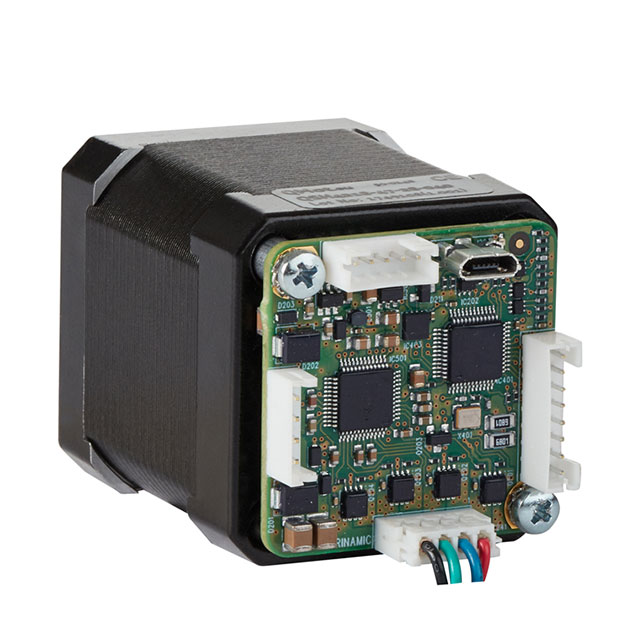

PD42-3-1241-TMCL
PANDRIVE NEMA17, 24V, 0.4NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ series bipolar stepper motor, part number PD42-3-1241-TMCL. This hybrid stepper motor features a NEMA 17 frame size with a 1.8° step angle, providing 200 steps per revolution. It is rated for 24VDC and offers a holding torque of 400 mNm (56.66 oz-in). The motor has a coil resistance of 0.5 Ohms and a current rating of 3 A per coil. Its dimensions are 42.00mm x 42.00mm square, with a 5.00mm diameter flatted shaft measuring 24.00mm in length. The PD42-3-1241-TMCL includes an integrated controller and terminates with wire leads and a connector. Mounting hole spacing is 31.00mm. This component is suitable for applications in automation, robotics, and motion control systems. It operates within an ambient temperature range of -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 56.66 / 400 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 3 A |
| Coil Resistance | 0.5 Ohms |
| Steps per Revolution | 200.0 |
