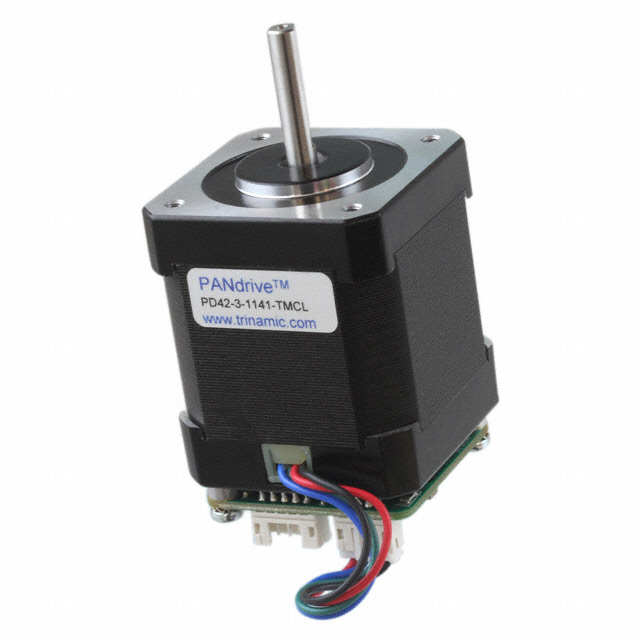

PD42-3-1141
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ series PD42-3-1141 is a bipolar stepper motor designed for precise motion control. This hybrid motor features a NEMA frame size of 17, with outer dimensions of 1.654" x 1.654" (42.00mm x 42.00mm). It offers a step angle of 1.8° and 200 steps per revolution, delivering accurate positioning. The motor has a rated voltage of 24VDC and a current rating of 2 A per phase. Its holding torque is 69.39 oz-in (490 mNm). The PD42-3-1141 includes an integrated controller and a flatted shaft with a diameter of 0.197" (5.00mm) and a length of 0.945" (24.00mm) for mounting. Termination is via wire leads with a connector. This component is suitable for applications in automation, robotics, and industrial equipment requiring reliable stepper motor performance.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 71 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 69.39 / 490 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200.0 |
