PD42-3-1140-CANOPEN
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

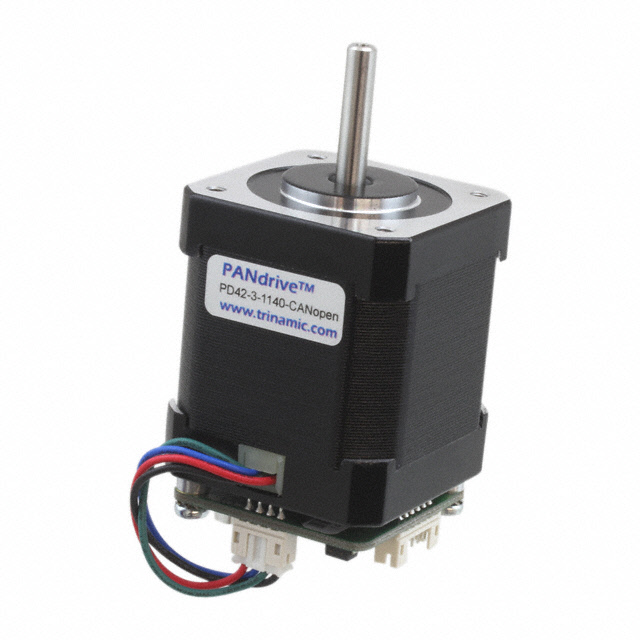

Analog Devices Inc./Maxim Integrated PANdrive™ series bipolar stepper motor, part number PD42-3-1140-CANOPEN. This hybrid stepper motor features a NEMA frame size of 17, with dimensions of 1.654" x 1.654" (42.00mm x 42.00mm) square. It provides 200 steps per revolution, resulting in a 1.8° step angle and a holding torque of 62.3 oz-in (440 mNm). The motor is rated for 2A current and operates at 24VDC. Key features include an integrated controller and a flatted shaft with a diameter of 0.197" (5.00mm). The shaft length is 0.945" (24.00mm). Termination is via wire leads with a connector. This component is suitable for applications in industrial automation and robotics.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 77 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 62.3 / 440 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | - |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200.0 |
