PD42-2-1370-TMCL

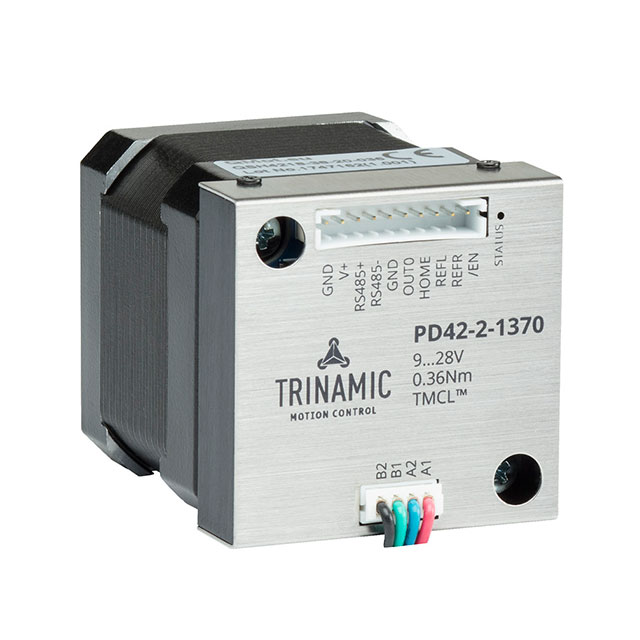

PANDRIVE NEMA17, 24V, 0.36NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated PANdrive™ PD42-2-1370-TMCL is a bipolar stepper motor featuring a NEMA 17 frame size. This hybrid motor delivers a holding torque of 360 mNm (50.98 oz-in) and a rated voltage of 2.4VDC. It operates with a current rating of 2 A per phase and a coil resistance of 1.2 Ohms. The motor exhibits a step angle of 1.8°, providing 200 steps per revolution with ±5% accuracy. Key features include an integrated controller and a flatted shaft with a diameter of 0.197" (5.00mm) and a length of 0.945" (24.00mm). The motor's dimensions are 1.654" x 1.654" (42.00mm x 42.00mm) with mounting hole spacing at 1.220" (31.00mm). Its operating temperature range is -20°C to 50°C. This component is suitable for applications in automation, robotics, and motion control systems.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Bulk |
| Voltage - Rated | 2.4VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 50.98 / 360 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 2 A |
| Coil Resistance | 1.2 Ohms |
| Steps per Revolution | 200.0 |
