PD42-2-1070
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

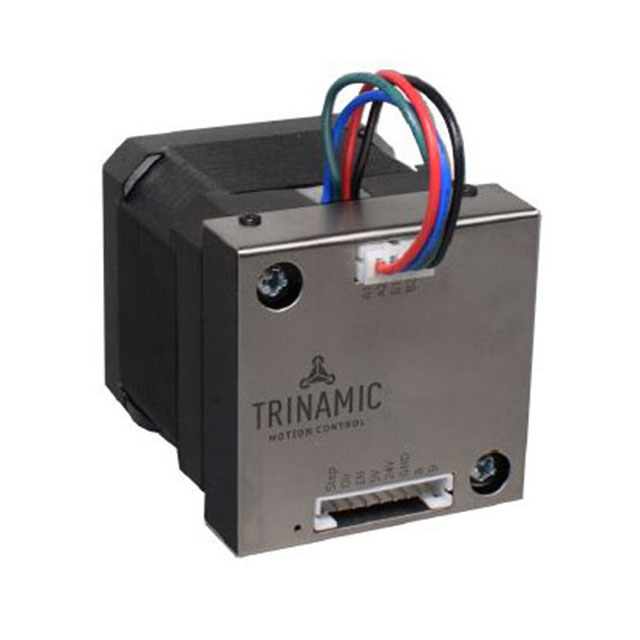

Analog Devices Inc./Maxim Integrated PANdrive™ PD42-2-1070 is a bipolar stepper motor with a NEMA frame size of 17. This hybrid motor features a 1.8° step angle, providing 200 steps per revolution for precise positioning. It operates with a 24VDC rating and a 1A current rating per coil, with a coil resistance of 1.2 Ohms. The motor delivers a holding torque of 51 oz-in (360 mNm) and has an accuracy of ±5%. Its dimensions are 1.654" x 1.654" (42.00mm x 42.00mm) with mounting hole spacing at 1.220" (30.99mm). This component is suitable for applications in automation, robotics, and industrial control systems, offering an integrated controller and connector termination for streamlined integration. The operating temperature range is -20°C to 50°C.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Round Shaft |
| Packaging | Bulk |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 51 / 360 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | 1.220"" (30.99mm) |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 1 A |
| Coil Resistance | 1.2 Ohms |
| Steps per Revolution | 200.0 |
